ASE SMT Stencil Printer

ASE SMT Stencil Printer

Specifications:

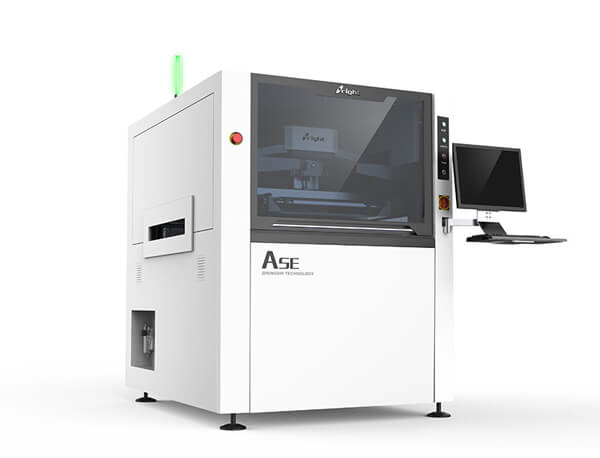

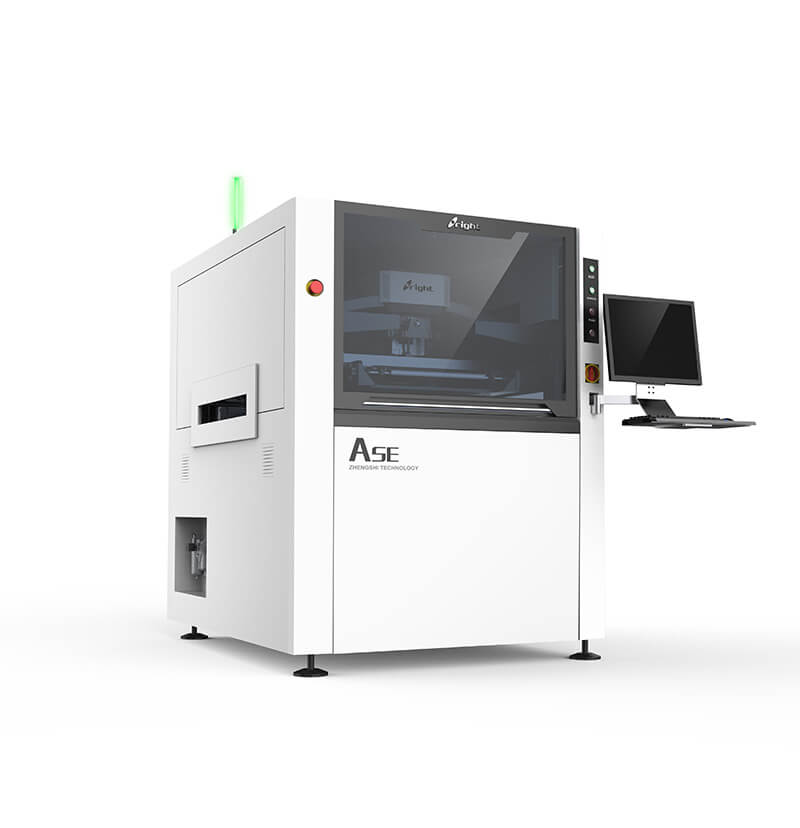

ASE SMT Stencil Printer

A Series High Precision Automatic Solder Paste Printer designed for high precision

steel mesh printing or stencil printing in SMT industry.

Printing PCB size：50mm x 50mm ~400mm x 340mm;

PCB thickness: 0.4mm ~ 6mm

FPC thickness: ≦0.6mm (Excluding jig)

Applicable pitches of Components

SMT Components such as resistors, capacitors, inductors, diode and triode: 0201, 0402, 0603, 0805, 1206 and other specifications;

IC: support SOP, TSOP, TSSOP, QFN packaging, min. pitch 0.3mm; support BGA, CSP packaging,

min. ball 0.2mm;

Applicable PCB Types

Applicable to PCB types of mobile phone, communication, LCD TV, STB, family cinema, vehicle electronics,

medical power equipment, aerospace and aviation, besides general electronics products.

1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;

New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;

2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure

for a little while can back again. According to the product flexible use

3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.

4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy

5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;

6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;

Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.

Model		Ase
Screen Frames	Min Size	470×370mm
	Max Size	737×737mm
	Thickness	25~40mm
PCB Min Size		50×50mm
PCB Max Size		400×340mm
PCB Thickness		0.4~6mm
PCB Warpage		<1%
Transport Height		900±40mm
Transport Direction		Left-Right;Right-Left;Left-Left;Right-Right
Transport Speed		Max 1500mm/s（Programmable）
Board Location PCB	Support System	Magnetic Pin/Up-down table adjusted/support block
	Clamping System	Side clamping,vacuum nozzle
Printer Head		Two independent motorised printhead
Squeegee Speed		6~200mm/sec
Squeegee Pressure		0~15kg
Squeegee Angel		60°/55°/45°
Squeegee Type		Stainless steel（standard）,plastic
Stencil Separation Speed		0.1~20mm/sec （Programmable）
Cleaning System		Dry 、Wet、Vacuum （Programmable）
Table Adjustment Ranges		X:±10mm;Y:±10mm;θ:±2°
Machine
Repeate Position Accuracy		±0.01mm
Printing Accuracy		±0.025mm
Cycle Time		<7s（Exclude Printing & Cleaning）
Product Changeover		<5Min
Air Required		4.5~6kg/cm2
Power Input		AC:220±10%,50/60HZ1F3KW
Control Method		PC Control
Machine Dimensions		1220（L）×1355（W）×1500（H）mm
Machine Weight		Approx:1000kg
