Ersa HOTFLOW 3/20 Reflow Oven

Ersa HOTFLOW 3/20 Reflow Oven

Specifications:

Ersa HOTFLOW 3/20 Reflow Oven

Excellent heat transfer with the most varied board assemblies

Rest-oxygen monitoring and control with low N2 consumption

Low energy consumption through intelligent energy management

Multi-level controlled cooling

Multi-level process gas cleaning system

"On the fly" maintenance for increased machine availability / uptime

Multi-track conveyor system (1-4 tracks)

Ersa Process Control (EPC) for continuous process monitoring

Ersa Auto Profiler software for quickly generating temperature profiles

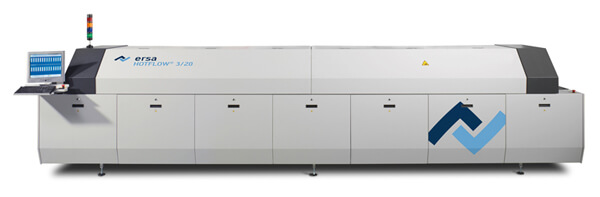

Ersa HOTFLOW 3/20 Reflow Oven

The Ersa HOTFLOW 3/20 Reflow Soldering System is of robust design and manufactured entirely from steel, welded air-tight, powder coated and with interior electric cabinet and a PC operating terminal. Features include the motorized hood opening, quick-change convection heater cassettes, multi-level process gas cleaning and a powerful and effective cooling zone.

Dimensions

Length: 6,590 mm

Width: 1,530 mm

Height: 1,450 mm

Weight appr. 3,200 kg

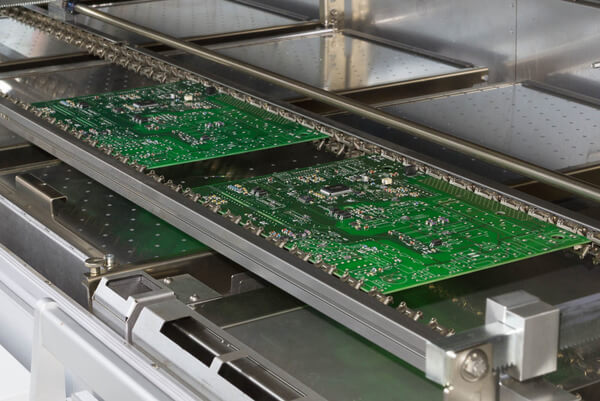

Conveyor system

Working width: 45-580 mm automatically infinitely adjustable

Clear passing height: +25 (35)/-37 mm

Centre support, automatically infinitely adjustable

Conveyor speed: 20-200 cm/min

Pin-and-chain conveyor with 3 / 4 / 5 mm pin length

Process zone

Process length: 5,190 mm

Heated length: 3,700 mm

Cooling length: 1,490 mm

Heating system

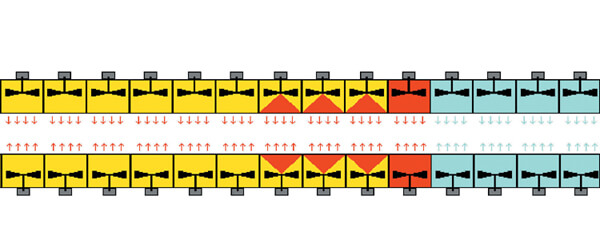

Up to 20 convections heating cassettes

(Preheating up to 14 cassettes, reflow zone up to 6 cassettes)

Volumetric flow rate each module adjustable up to 500 m3/h

Rated power each module: 3.3 kW

Cooling

Up to 4 levels cooling zone with water back-cooling

Electrical data

400 V, 3 Phase, N, Ground, 50/60 Hz

Continuous output during operation: appr. 12-19 kW

Exhaust

Extraction rate 2x 400 m3/h with monitoring feature

Options:

Multi-track conveyor system with separate drives each track

Connectable center supports

Inert atmosphere feature with rest-oxygen monitoring and control

Metering of N2 consumption

Power-cooling with 3 convection modules and "on the fly" process gas cleaning

Emergency power supply

Ersa Process Control (EPC)

Auto Profiler

Computation of energy consumption

Quick profile change

Up to 4 tracks with center support can be installed (1 track fixed, 3 tracks movable) - increasing the flexibility of the system
