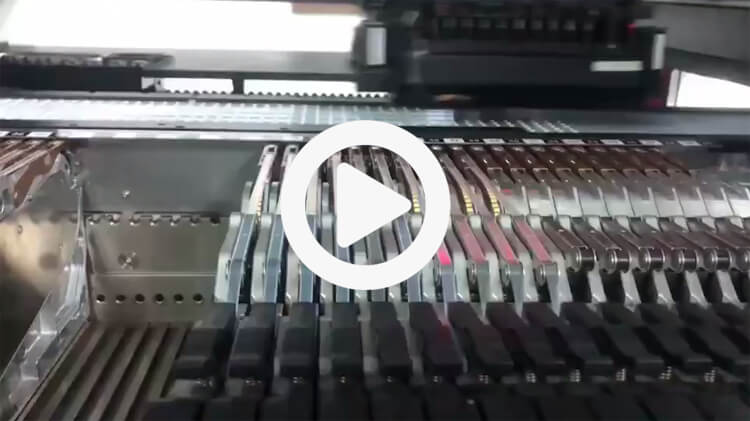

Hanwha SM482 Plus Pick and Place Machine

Hanwha SM482 Plus Pick and Place Machine

Specifications:

Hanwha SM482 Plus Pick and Place Machine

1. Applicability to odd-shaped parts is reinforced.

2. Equipped with a head with one gantry and six spindles

3. Placement accuracy correction system(head offset,C/V offset etc.)

4. "Applicable to Max.740(L)x460(W)(Option)PCBs for long boards applied to LEDS and displays."

5. "It has improved actual producticity and placement quality by applying high speed and high precision electrically driven feeders."

6. Placement Rate:30,000CPH(Optimum)

7. Board Dimension(mm)):50(L)*40(W)~460(L)*400(W)

8. Option: 50(L)*40(W)~760(L)*460(W)

9. PCB Thickness:0.38mm~4.2mm

10. External Dimension(mm): 1650(L)*1680(D)*1530(H)

11. PCB Standard Transport Direction :Left-to-Right/Right-to-Left(Option)

Top Advantage:

1. Advanced High Speed Flexible Mounter.

2. High Speed, High Precision and Electrically Driven Feeder.

3. New Vacuum System and Optimized Pickup/ Placement Motion.

Specifications	Hanwha pick and place machine
Model Name	SM471plus	SM481plus	SM482plus
Alignment	Flying Vision	Flying Vision+stage vision	Flying Vision+stage vision
Spindles	10 Spindles × 2 Gantries	10 Spindles × 1 Gantry	6 Spindles × 1 Gantry
Placement Speed	78,000CPH(Optimum)	40,000CPH(Optimum)	30,000CPH(Optimum)
Placement Accuracy	±40μm@μ±3σ	±40μm@μ±3σ	±40μm@μ±3σ
Applicable Parts	0402 ~ 14mm(H 12mm)	0402 ~ 42mm(H 15mm)	0402 ~ 55mm(H 15mm)
Applicable PCB(L × W)	Max. 510 × 460(Standard)	Max. 460 × 400(Standard)	Max. 460 × 400(Standard)
	Max. 610 × 460(Option)	Max. 1500 × 460(Option)	Max. 1200 × 510(Option)
Dimension(L.D.H)	1650×1690×1458	1650×1680×1530	1650×1680×1458
Mass(Kg)	Approx. 1820	Approx. 1655	Approx. 1600
