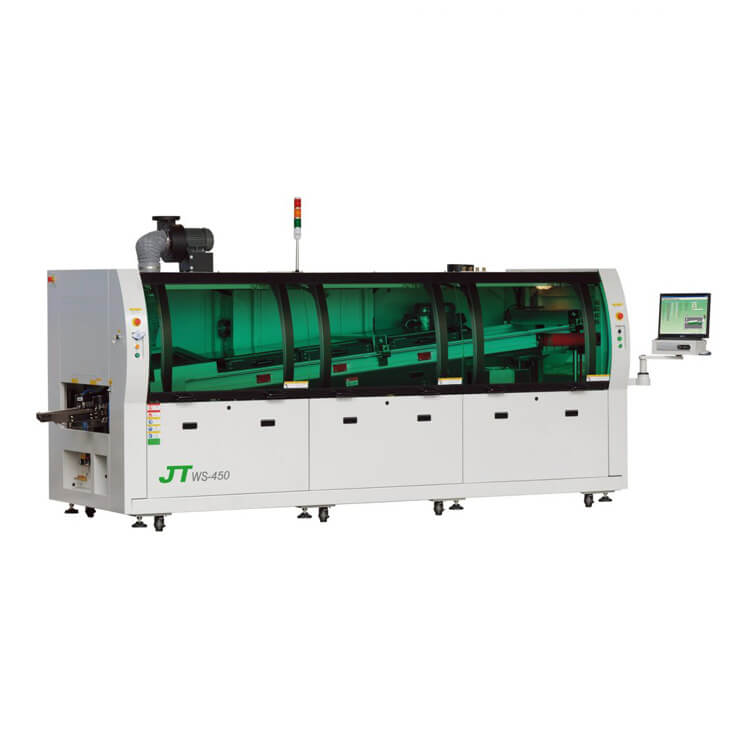

JT Wave Soldering Machine WS-450

JT Wave Soldering Machine WS-450

Specifications:

JT Wave Soldering Machine WS-450

Free combination of preheating module can be arbitrary chosen hot air and infrared preheating Preheat diverse portfolio

Maximum transport capacity of the entire rail 60 kg, meet the demanding production needs

Low tin slag amount of oxidation, new wave nozzle design, tin furnace has automatic access lifting function

Regional selective spray flux can save more than 70%

Free combination of preheating module can be arbitrarily chosen hot air and infrared preheating preheat diverse portfolio

Segmented transport rail design, 60 kg rail transport capacity, the maximum width of products through increased to 610 mm

Dimensions	4350(L) x 1600(W) x 1730(H) mm
Power supply	3P 5 W, 380 VAC, 50/60 Hz, 63 A
Power	80 kW
Total power	45 kW
Working power	Approx. 12.5 kW
Control system	PC + PLC
No. of preheating zones	4
Preheating length	2480 mm
Preheating temp.	Room temp - 250°C
PCB size	50 - 450 mm
Height	Top: 120 mm; Bottom: 25 ± 5 mm
Speed	300 - 1800 mm/min
Entry height	750 ± 20 mm (Option: 900 ± 20 mm)
Conveyor angle	4 - 7°
Conveyor motor power	90 W 3P 220 VAC

Keywords:

JUKI RS-1R Pick and Place Machine, JUKI RX-7R Pick and Place Machine, JUKI RX-8 Pick and Place Machine, JUKI RS-1R SMT Assembly Line, JUKI RX-7R SMT Assembly Line, JUKI RX-8 SMT Assembly Line.

We provide JUKI SMT assembly line solutions, including JUKI Assembly Line Equipments ,  JUKI products,  JUKI Pick and Place Machine Machine,  JUKI SMT Stencil Printer,  JUKI Assembly Line,  JUKI SMT Reflow Oven;  JUKI SMT Inspection Machine;  JUKI SMT Spare Parts;  SMT Equipment;  JUKI SMT Peripheral Equipment;  any kind SMT equipments you may need, please contact us for more information: wechat whatsapp:+8613691605420, Email: tommy@flason-smt.com
1) This is the first time I use this kind of machine, is it easy to operate?
There is English manual or guide video that show you how to use machine.
If you still have any question, please contact us by e-mail/skype/phone/wechat online service.
2) If machine have any problem after I receive it, how can I do ?
Free parts send to you in machine warranty period.
If the part is less than 0.5KG, we pay the postage.
If it exceeds 0.5KG, you need to pay the postage.
3) MOQ ?
1 set machine, mixed order is also welcomed.
4) How can I buy this machine from you? ( Very easy and flexible !)
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment And 100% quality check before shipping.
F.Send your order by air or by sea.
5)Why choose us ?
A. We have customer world wide, you can check our credit service with them !
B. Free Online installation, traning, programming and technical support !
C. One stop full Through Hole Assembly Line Equipments Solutions !
