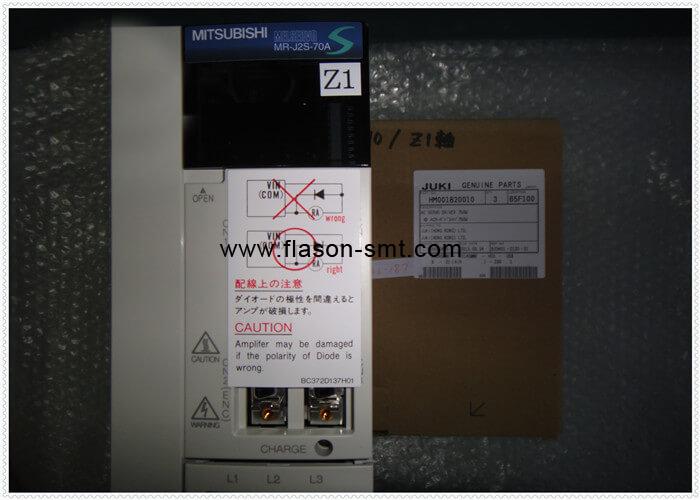

JUKI 1710 Z1 DRIVER HM001820010 MR-J2S-70A

JUKI 1710 Z1 DRIVER HM001820010 MR-J2S-70A

Specifications:

JUKI 1710 Z1 DRIVER HM001820010 MR-J2S-70A

77 401-29273 HDM-OCC LIGHT L CABLE ASM

78 401-29639 OCC

79 401-29640 OCC LENS

80 401-28879 OCC C PCB ASM

81 401-28878 OCC A PCB ASM

82 401-29106 HDM-HMS L RELAY CABLE ASM

83 401-29108 HMS CABLE ASM

84 401-85429 NZL-UP SV EXTENSION CABLE ASM

85 401-83349 NZL-UP SV CABLE ASM

86 401-86318 HDM-TMP SENSOR CABLE ASM

87 401-28883 THERMAL SENSOR PCB ASM

88 HD-0030600-00 SENSOR

89 401-19461 HEAD FAN MOTOR A ASSY

90 401-36334 SERVO MOTOR 30W

91 EZ-1492148-11 AMPLIFIER SERVO

92 401-82565 ZC CN2A CABLE ASM

93 401-82563 ZC CNP2A CABLE ASM

94 401-87431 SERVO MOTOR 30W

95 401-29650 4AXIS INTEGRAL TYPE T AXIS DRIVER

96 401-36335 SERVO MOTOR 30W

97 401-82252 HDR-ZA AMP PWR CABLE ASM

98 401-82253 HDR-ZB AMP PWR CABLE ASM

99 401-82254 HDR-ZC AMP PWR CABLE ASM

100 401-82222 HDR-TA AMP PWR CABLE ASM

101 401-82250 TAMP-HDR SERIAL CABLE ASM

102 401-82215 TA CN5-CN0713 CABLE ASM

103 401-82251 HDR-SV CABLE ASM

104 401-33002 NZL UP SENSOR 6T L CABLE ASM

105 401-33003 NZL UP SENSOR 6T R CABLE ASM

106 401-89336 HDR-Z VAC SENSOR CABLE ASM

107 401-82489 VACUUM_UNIT

108 #01 401-88158 EU BTM-BANK UP CABLE ASM(EN)

109 #01 400-02344 BUP SHORT WIRE(EN) ASM

110 #01 400-02287 BANK SW CABLE ASSY

111 401-82229 CN A5-X/YL/YR CNP1 CABLE ASM

62.SYSTEM DIAGRAM (2)

REF.NO NOTE PART NO D E S C R I P T I O N 1 401-28871 IO CONTROL PCB ASM

2 401-82247 IO-F BKR SERIAL CABLE ASM

3 401-29320 IO-SF SERIAL CABLE ASM

4 401-83536 POWER SUPPLY UNIT B ASM

5 #01 401-87824 POWER SUPPLY UNIT B ASM_EN
