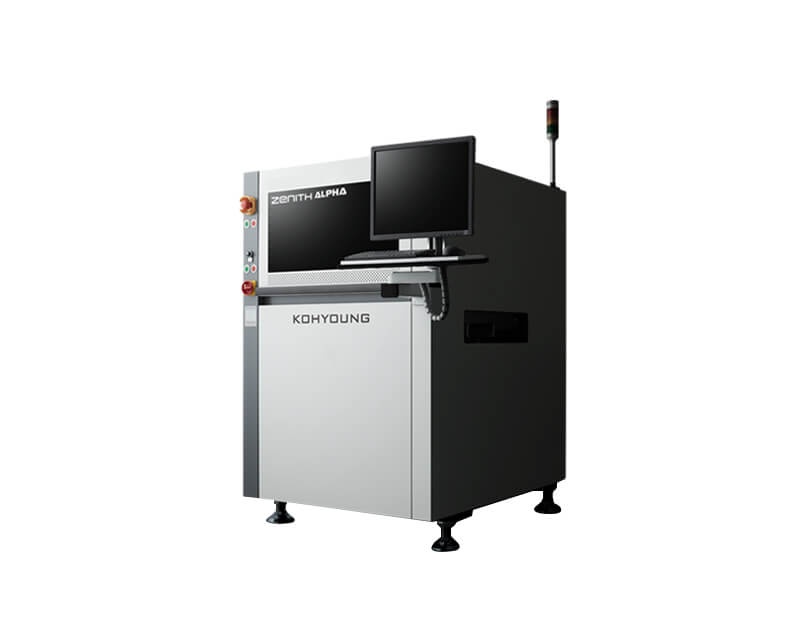

Koh Young ZENITH Alpha 3D AOI

Koh Young ZENITH Alpha 3D AOI

Specifications:

Koh Young ZENITH Alpha 3D AOI

The World's Best-selling & First Full 3D Automated Optical Inspection

Eliminates all the sources of defects using full 3D measuring inspection equipment skills- Removes shadow problems utilizing 8-way projection- Realizes perfect 3D solder joint inspection- Provides accurate inspection data with real-time PCB warp compensation· Full 3D data-based process optimization solution: Realization of industry 4.0 smart factory- Process information DB and real-time remote monitoring- Inspection program management automation & efficiency· Optimized specification model for a variety of production environment

High-precision weld seam measurement algorithm provided by KOH YOUNG technology for artificial intelligence

8 MPixel camera / 15μm resolution

Z resolution: 1μm

The smallest component size: 300μm (0402)

4 projectors with the same capacity as 8 projectors

PCB size: 490 x 510 mm

PCB weight: 4kg

3D inspection speed: 27.14cm²/sec

Camera reads 1D and 2D barcodes

Offline programming station

Defect inspection station

service station

KSMART server solution with software suite

Integrated calibration check wedge

Check for foreign objects on the PCB
