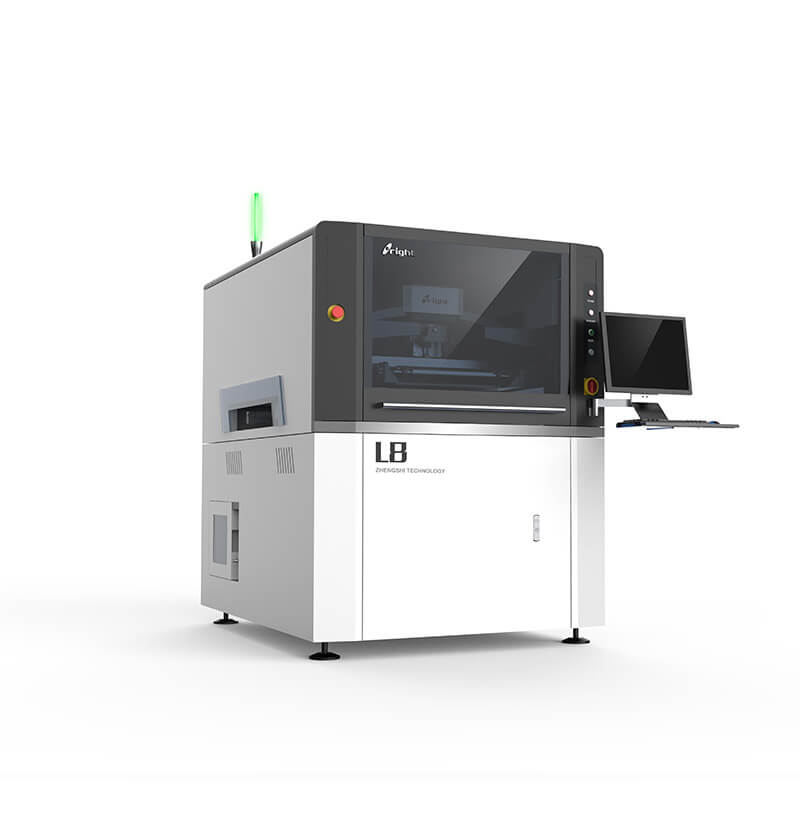

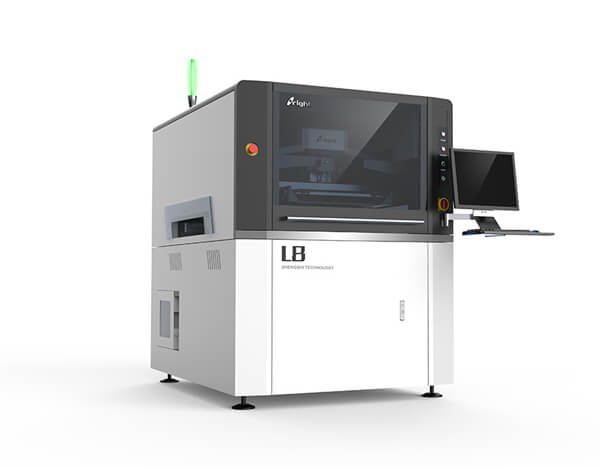

L8 SMT Stencil Printer

L8 SMT Stencil Printer

Specifications:

L8 SMT Stencil Printer

1,All new 3rd generation stencil X beam structure, add solder paste operators more convenient and accurate placement steel net;

New type torque X beam, solve the solder paste and dust deposition, prolong the service life of the machine;

2,Scalable on pressure device, in view of easy deformation of the PCB printing can make the tablet out, don't need to use pressure

for a little while can back again. According to the product flexible use

3,The whole machine use imported self-lubricating guide rail, guide rail need not add lubricant, within five years guide free maintenance within five years.

4,X Y1 Y2 in U.S. HAYDON linear motor, the Japanese precision drive screw, self-lubricating guide rail, to ensure accuracy

5,Net frame Y to automatically locate, can quickly realize automatic stencil counterpoint;

6,Curved blade beam using high strength steel, in the printing process to ensure the stability of the print head;

Floating type scraper system, the unique elastic stay device, can very good protection in scraper drop process stencil and scraper.

Item	Model	L8
Screen Frames	Min Size	650X650mm
	Max Size	850X850mm
	Thickness	25~40mm
PCB Min Size		80X50mm
PCB Max Size		650X610mm
PCB Thickness		0.4~6mm
PCB Warpage		＜1%
Transport Height		900±40mm
Transport Direction		Left-Right;Right-Left;Left-Left;Right-Right
Transport Speed		Max 1500mm/S Programmable
Board Location PCB的定位	Support System	Magnetic Pin/Up-down table adjusted/supportblock by hand Magnetic thimble / adjustable jacking platform / contour block
	Clamping System	One. Machine specification parameters
Squeegee Speed		6~200mm/sec
Squeegee Pressure		0~15Kg
Squeegee Angle		60°/55°/45°
Squeegee Type		Stainless steel(Standard), plastic
Stencil Separation Speed		0.1~20mm/sec Programmable
Cleaning System		Dry、Wet、Vacuum (Programmable)
Table Adjustment ranges		X:±10mm;Y:±10mm;θ:±2°
Machine
Repeat Position Accuracy		±0.01mm
Printing Accuracy		±0.025mm
Cycle Time		<11s (Exclude Printing & Cleaning)
Product Changeover		<5Min
Air Required		4.5~6Kg/cm2
Power Input		AC:220±10%,50/60HZ 1Φ 3KW
Control Method		PC Control
Machine Dimensions		1330(L)X1530(W)X1500(H)mm
Machine Weight		Approx:1200Kg
