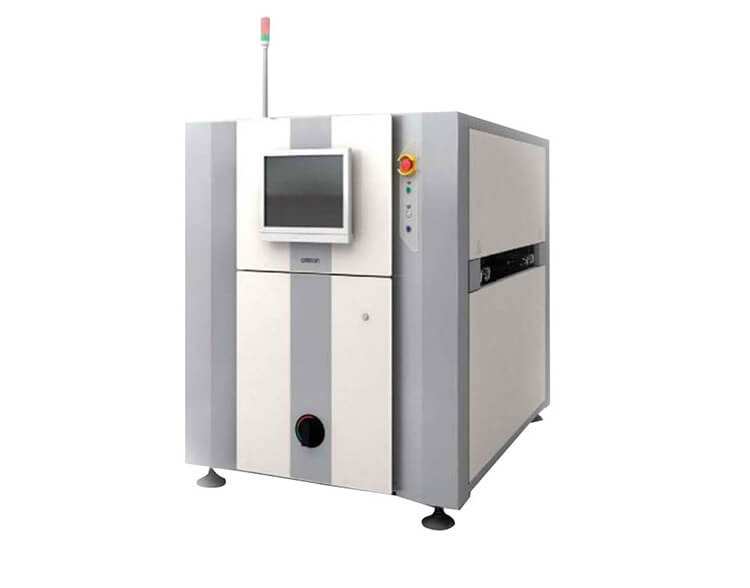

Omron 3D AOI VT-S530

Omron 3D AOI VT-S530

Specifications:

Omron 3D AOI VT-S530

Omron VT-S530 is Industries Highest Value Full 3D-AOI System.

The VT-S530 provides Full 3D-AOI capability, High performance, Highest First Pass Yield, Zero Escape and lowest False Rejects amongst other strengths.

VT-S530 series with Pre - Post Reflow configurations have been widely adopted in production lines where high value and quality control is required. VT-S530 Series uses a combination of Phase Shift and Omron’s unique color image processing technology called "color highlight ™ 3D shape reconstruction technology", providing the highest accuracy in Solder Joint Inspection called ‘SJI’.

The technology available on the VT-S530 has been proven ultra-performant on the existing VT-S730-H with which it is sharing the new Image-Capture Module.

Features

Built Upon a History of Innovation and track record of High-Quality Solutions

High Speed Top View 12Mpix Camera with Telecentric Lens

Latest 3D Programmable DLP Projectors (25mm max Height Inspection)

Omron’s Unique Color-Highlight Illumination Technology

Single / Dual Lane and Pre / Post Reflow configurations

Real 3D Image Technology for Component and High-Quality Solder Joint Inspection

Real-time Interactive 3D data feedback to the Programmer

View and edit samples of all parts on the board simultaneously (in real-time)

Process histograms are created automatically for all inspection tests and components

AI self-optimization tools can perform automated inspection logic and criteria changes

Real defect images can be stored in the library and used to improve the tuning process

Consistent and quantitative inspection tests and logic across all component types

Full 3D Data Processing and realization of Industrial 4.0 Smart Factory Solution

Industrial 4.0 connectivity with The Hermes Standard for Full M2M Connectivity.

Omron Q-upNavi: Combine SPI, AOI and AXI Inspection Result Data for True Root-Cause Process Analysis for Process Improvement.

Omron Q-upAuto: Advanced Manufacturing Analysis Combining Q-upNavi ‘Inspection Result Data’, with ‘Manufacturing Process Data’ for High Level Process Improvement.

VT-S530 is the latest 3D-AOI technology providing versatility for the Highest Value Quality Solutions, combining Highest Capability and Speed on the market, for tomorrows production environments.

Dimensions		1180(W)×1640 (D)×1500(H) mm
Weight		Approx. 850kg
Power supply	Voltage	200 - 240VAC (single phase), voltage fluctuation range ±10%
	Normal rated power	2.0kVA
Line height		900±20mm
Air supply pressure		0.3 - 0.6MPa
Operating temperature range		10 - 35°C
Operating humidity range		35 - 80%RH (Non-condensing)
Image signal input block	Imaging system	12M pixel camera
	Inspection principle	3D reconstruction through color highlight and phase shift technology
	Image resolution	10μm/15μm
	FOV	10μ: 40×30mm
		15μ: 60×45mm
Functional specifications	Supported PCB size (min.)	50(W)×50(D)mm
	Supported PCB size (max.)	Dual lane: 510(W)×330(D)mm
		Single lane: 510(W)×680(D)mm
	Clearance	Above: 50mm; Below: 50mm
	Height measurement range	25mm
	Thickness	0.4 - 4mm
	Inspection item	Component height, lift, tilt, missing/wrong component, wrong polarity, flipped component, OCR inspection, 2D code, component offset (X/Y/rotation), fillet (height/length, end  joint width, wetting angle, side joint length), exposed land, foreign material, land error, lead  offset, lead posture, lead presence, solder ball, solder bridge
