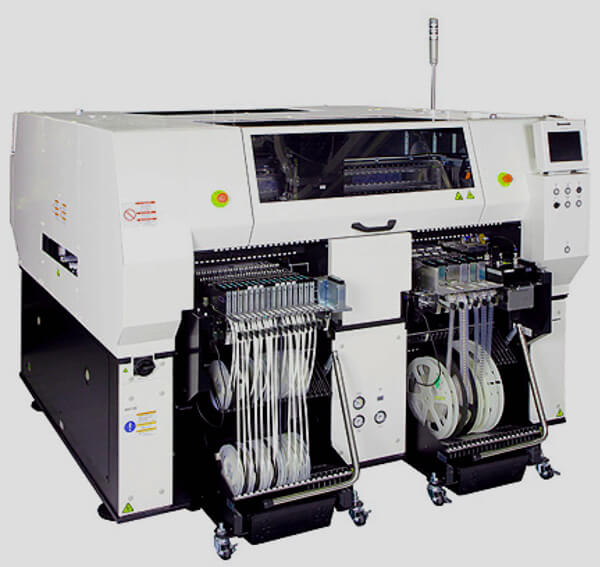

Panasonic AM100 Pick and Place Machine

Panasonic AM100 Pick and Place Machine

Specifications:

Panasonic AM100 Pick and Place Machine

One head, one machine solution with a very large component range
Interchangeable feeders, multi-functional nozzles, and chucks with the CM and NPM series Cost-effective and high quality production
Standard Features:
14-nozzle Highly Versatily Head
High Resolution Line Camera
Nozzle Changer
CAD Data Import Utility
Pre-defined Part Libray
Adaptive Component Pick
Auto Placement Calibration
Multi-job Production Scheduling
Auto Feeder Teach
Fiducial Teach with Auto Adjust
Virtual PCB Inspection
PoP Process Capable
NPI Software Tool Set
Specifications:
Model Name (Number) AM100 (NM-EJM4D)
Concept              Scalable Single Gantry Hyrbrid Drive Platform
Drive System         Highly Accurarate Linear Motor Hybrid Drive
Component Alignment  Digital Color Line Scan Camera, Fixed Position
Head Design          14-spindle Ultra High Flex Head
Board Dimensions
510 x 460mm (20 x 18”) Standard
1,200 x 460mm (47x18”) Optional
Board Thickness    up to 8mm
Placement Accuracy
±40 micron Cpk ≥1.0 Chip
±30 micron Cpk ≥1.0 QFP
Throughput
Ideal: 35,800 cph
IPC9850: 22,000 cph
Component Range
Minimum: 01005 (0402M)
Maximum: 120x90mm (4.7x3.5”) & 150x25mm (6x1”)
Height: up to 28mm (1.1”)
Bumps: 0.15mm diameter, 0.3mm pitch
Feeder Capacity
Reels: up to 160 reels
Tubes: up to 60 tubes
Trays: up to 40 trays
Facilities
Electric: 3 Phase AC 200/220V ±10V, AC 380/400/420/480V ±20V 2.0 kVA400V 2 KVA
Pneumatic Min 0.5 MPa to Max 0.8MPa, 200 L/min (A.N.R.)
Mass: 2370 Kg (Main Body with 4 Feeder Banks)
Dimensions: W 1,970 x L 2,019 x H 1,450mm
