Panasonic CM602 Pick and Place Machine

Panasonic CM602 Pick and Place Machine

Specifications:

Panasonic CM602 Pick and Place Machine

Features & Benefits:

One platform solution for any kind of production

Commonality with existing equipment

Linear motor drive increases reliability and reduces maintenance

Wide component capability from 0402 (01005) chips to 90 x 100mm on up to 18" x 20" boards

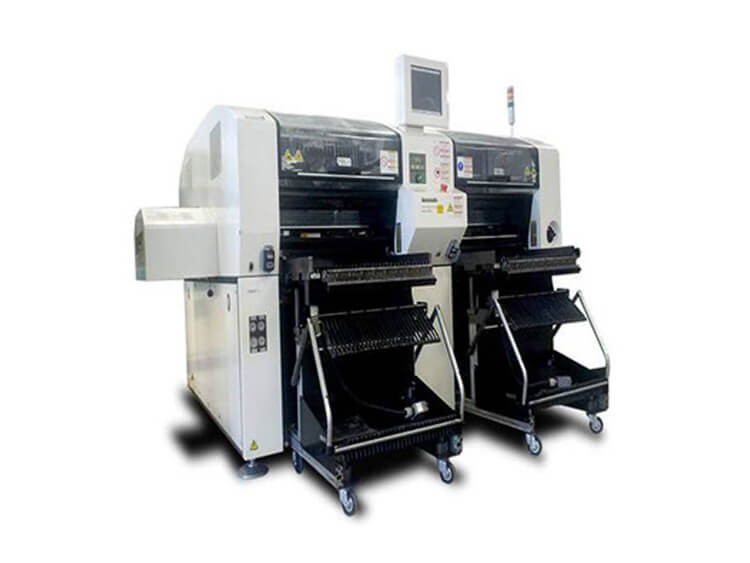

Panasonic's CM602 high speed multi-functional placement machine lets you achieve world-class throughput via the light head, high-speed recognition camera and linear motor. Fully compatible with our successful CM series feeder units, nozzles and operation, this single platform solution can place up to 100,000 components per hour by selecting the best-suited combination of high-speed and multi-functional heads. Fast, flexible and intelligent - the CM602 takes your productivity to new heights.

Model ID	CM602-L
PCB dimensions (mm)	L 50 x W 50 to L 510 x W 460
High-speed head	12 nozzles
Max.speed	100 000 cph (0.036 s/chip)
Placement accuracy	±40 µm/chip (Cpk1)
Component dimensions	(01005") 0402 chip *5 to L 12 mm × W 12 mm × T 6.5 mm
High-flexibility head	LS 8 nozzles
Max.speed	75 000 cph (0.048 s/chip)
Placement accuracy	±40 µm/chip, ±35 µm/QFP 24 mm,
	±50 µm/QFP <24 mm (Cpk1)
Component Dimension	(01005”) 0402 chip *5 to L 32 mm × W 32 mm × T 8.5 mm *8
	When the generalized Ver.5 is optionally selected (01005”)0402 chip *5 to L 100 mm × W 50 mm × T 15 mm *6
Multi-functional head	3 nozzles
Max.speed	20 000 cph (0.18 s/QFP)
Placement accuracy	±35 µm/QFP (Cpk1)
PCB exchange time	0.9 s (Board length:up to 240 mm Under optimum conditions)
Electric source	3-phase AC 200, 220, 380, 400, 420, 480 V, 4.0 kVA
Pneumatic source *1	0.49 MPa, 170 L /min(A.N.R.)
Dimensions (mm)	W 2 350 x D 2 290 *2 x H 1 430 *3
Mass *4	3 400 kg
