PCB size 50﹡50~330﹡250 mm
Adhesive roll 2 rolls
Width adjustment Manual
Weight About 120 kg

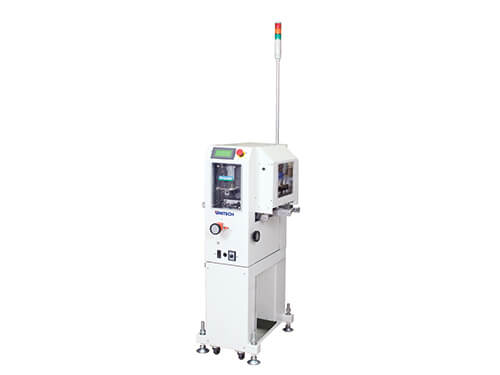

SMT PCB Cleaner UC-250M-CV
Specifications:
1.Specially designed for strict PCB surface clean requirement of SMT line.
2.Brush+Adhesive roller dual cleaning system.
3.Brush, adhesive roller, combine and pass mode,4 operation mode can be selected to use.
4.Can clean PCB top side surface with components mounted on the bottom side.
5.Standard equipped Ionizer system, greatly reduce the effect of ESD.
6.Contact type clean method, clean up to 99% dusts on PCB.
7.Easy Touch panel operation, Chinese, Japanese and English interface can be selected.
8.Dual cleaning system assures better results than single brush or adhesive roller system.
9.Especially suitable for miner parts like 0201,01005 and precise parts like BGA, uBGA,CSP etc
10.The first SMT cleaning machine maker in the world, 10 years SMT Cleaner’s design and production experience.
11.More than 200 world famous electronic factories are using our cleaning machine on their SMT lines.
Item | UC-250M-CV Spec |
PCB size | 50﹡50~330﹡250 mm |
PCB thickness | 0.5~2.0 mm |
Conveyor height | 900±25 mm |
Adhesive roll | 2 rolls |
Adhesive Paper | 1 rolls |
Brush | 1 pcs |
Vacuum unit | 1 set |
Conveyor direction | Left→Right or Right→Left |
Conveyor fix side | Front side fixed or Rear side fixed |
Width adjustment | Manual |
Ionizer | Build-in |
Air supply | 0.5Mpa |
Power supply | AC220V/100V, 50/60Hz,60W |
Dimension | L570 x W620 x H1265(mm) |
Weight | About 120 kg |
