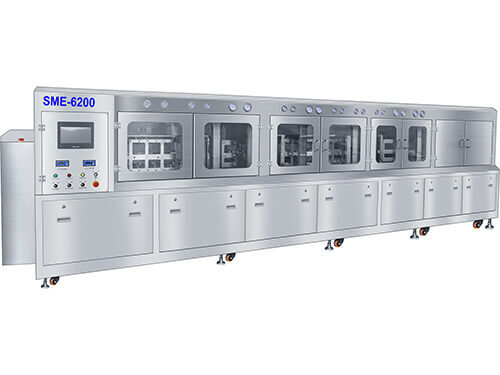

SMT PCBA In-line Cleaning Machine SME-6200

SMT PCBA In-line Cleaning Machine SME-6200

Specifications:

SMT PCBA In-line Cleaning Machine SME-6200

SME-6200 is an in-line, batch cleaning, high-end PCBA cleaning machine. It can effectively clean the residuals on SMT / THT welding PCBA, such as: rosin flux, water-soluble flux , non-clean flux ,solder paste and other organic and inorganic contaminations. Mainly used in aviation, aerospace, medical, new energy, automotive electronics, meters industries.

Machine Features：

1.Big quantity PCBA in line cleaning system.

2.Large flow clean method, super cleaning result. Thoroughly clean water-sular solder paste flux and non-clean solder paste flux on SMT or THT PCBA after welding.

3.Multi-areas aqueous detergent wash and DI water rinse process, Pre-clean, clean, final spray clean, air knives shear, hot air dry are completely according to settings.

4.Aqueous detergent and fresh DI water supply automatically, post-area DI water overflow to the previous-area.

5.Up/down detergent and DI water spray pressure can be adjusted, water pressure shown on meters.

6.Detergent and DI water spray pressure can reach to 80 PSI, it can permeate to PCBA bottom gap and make thoroughly clean.

7.Standard equipped with Resistivity monitoring system, resistivity range 0~18 MΩ.

8.Air knives shear+ long hot air dry system.

9.PCB flat conveyor net system, stable and no deviation.

10.PC control system, Chinese/English operation interface, program and parameters setting, load, save and change are very convenient.

11.Total SUS304 structure, Acid and Alkali corrosion resistance.

Item	SME-6200 Spec
Conveyor net width	600mm
Conveyor net speed	100~1500mm/min,suggest 300~400mm/min
Conveyor net height	900±50mm
PCB conveyor direction	From Left to Right
PCB width	50~600mm
PCB clean height	＜100mm
Clean tank	300L
Rinse tank	300L
DI water consumption	1~1.5m³/H
Exhausted air	36m³/Min
Control	PC+PLC
Power/air supply	380VAC，3P,50/60HZ，100KW/0.5Mpa
Resistivity range	0~18MΩ
Machine size	6350（L）x1530（W）X1620(H) mm
Machine weight	2000KG
