Maximum screen size 1200 x 1200 x 40 mm
Cleaning time 3~5min
Drying time 3~5min
Machine weight 500KG

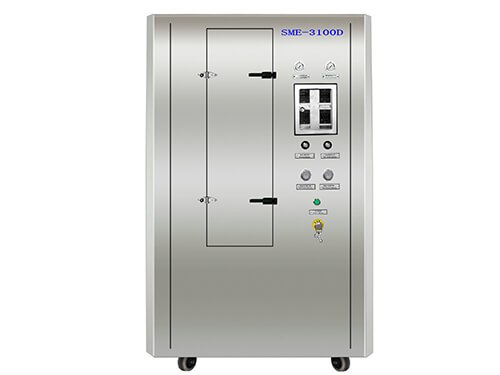

SMT Screen Cleaning Machine SME-3100D
Specifications:
SMT Screen Cleaning Machine SME-3100D
SME-3120D is designed to improve the cleaning efficiency while cleaning two screens of the special screen cleaning machine. Mainly used in relatively easy to clean the ink and mesh larger screen cleaning. The machine uses compressed air as the driving force, 360 ° rotation spray cleaning and rinsing way, effectively cleaning the printing plate after the residual ink to ensure that the screen screen plate and mesh cleaning; SME-3120D corresponding to the screen size of 1200x1200mm.
Machine Introduction:
1.the use of special stencil placement, while cleaning 2 stencils to improve cleaning efficiency.
2.for easy to clean the PCB ink or other ink screen.
3.the full use of compressed air as energy, do not use electricity, no explosion, fire and other potential security risks.
4.the overall use of stainless steel body, anti-acid corrosion, durable, beautiful appearance.
5.a key operation, cleaning, rinsing, drying automatically set by the set time.
6.cleaning, rinsing can be used separately with different solutions, more suitable for complex cleaning requirements.
7.multi-level precision filtration system, the solution recirculation.
8.equipped with automatic liquid, drainage system.
9.since the row of exhaust, connecting the factory pipeline, eliminating the screen cleaning shop odor, to protect the working environment, in line with environmental requirements.
10.reduce the printing defects by 10%, significantly improve the printing quality, reduce rework probability.
11.to improve the screen cleaning workshop environment, reduce the solvent volatile odor, to protect the health of workers.
12.cleaning solvent cycle repeated use, reduce cleaning costs, reduce the direct discharge of solvent pollution.
Maximum screen size | 1200 x 1200 x 40 mm (Lx W x H) x 2 sheets |
Tank capacity | 50L |
Cleaning time | 3~5min |
Rinse time | 1~2min |
Drying time | 3~5min |
Air consumption | 800~1000L/min |
Gas source | 0.5~0.7Mpa |
Outlet size | Φ124 × H30 (mm) |
filtering system | 1mm / 100um / 1um three filters |
Cleaning method | Spray cleaning + spray rinse + high pressure gas drying |
Machine size | L1300 x W1550 x H 2050(mm) |
Machine weight | 500KG |
