SMT Screen Developing and Stripping Machine SME-4100

SMT Screen Developing and Stripping Machine SME-4100

Specifications:

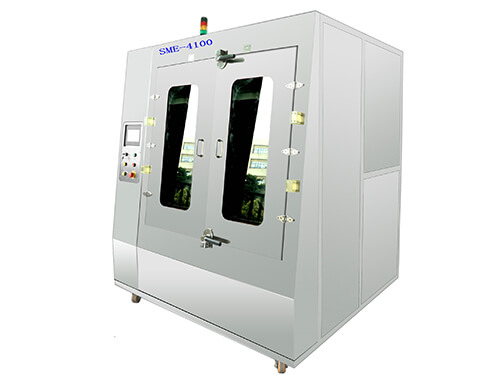

SMT Screen Developing and Stripping Machine SME-4100

SME-4100 Auto Screen Developing and Striping Machine is used to clean screen after exposure in screen producing process. 2 water spray rods clean the front and rear side of the screen to make the printing graph clear.

SME-4100 also used as Screen Striping Machine to clean photographic coating and ghost image on screen to make it a plain screen and ready to reuse again.

1.High quality electrical pump. High pressure water spray and recycle filtering function.

2.Totally SUS 304  structure, Strong Acid and Alkali corrosion resistance,  10 years lifespan.

3.One-key operation, developing/Stripping and dry process complete automatically according to pre-setting procedure。

4.Standard equipped water level control mechanism, automatically add water when water is not enough..

5.Standard equipped water less alarm and protection system, shut off the machine automatically to protect the pump.

6.Completely closed spray developing process, makes the ground of the workshop clean and day.

7.Super well-known electrical and pneumatic parts, perfect design, strictly produce process to ensure stability and high quality of the machine.

8.It also can be used as auto striping machine after adjusting the water jet pressure and time.

Item	SME-4100 SPEC
Max Screen Size	L1000 x W1000 x H40(mm)
Solvent tank	Min 120L
Clean time	1~4min
Dry time	3~5min
Air consumption	800~1000L/min
Air supply	0.5~0.7Mpa
Air vent size	Φ125 × H30 (mm)
Filter system	2mm water inlet filter
Developing /Striping	Spray clean + air dry
Power supply	AC380V,50HZ,11KW
Machine size	L2000 x W1500 x H 2150(mm)
Machine weight	About 500kg
