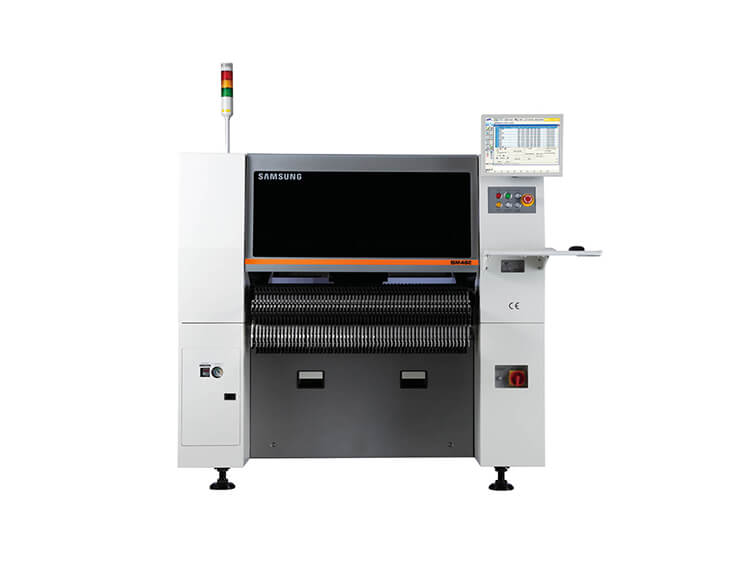

Samsung SM482 Pick and Place Machine

Samsung SM482 Pick and Place Machine

Specifications:

Samsung SM482 Pick and Place Machine

Chip theoretical speed of 28,000 CPH

Mounting range 0402Chip ~ □ 55mmIC

Placement accuracy plus or minus 0.03mm

PCB size 460 (L) * 400 (W)

Equipment Size 1,650 (L) x 1,680 (D) x 1,530 (H)

Power AC200 / 208/220/240/380

Equipment weight 1600KG

Based on SM471 high-speed placement machine, the SM482 is a rugged, 6-axis universal machine with up to 55mm ICs for ruggedness and support for Polygon identification solutions. For the shape of complex shaped components provide the best solution. Also, by applying electric feeder, increased practical productivity and placement quality. It can share with the SM pneumatic feeder *

The original SM3 / SM4 series of feed Therefore, it will be more convenient for the old customers, while saving the configuration of the dispenser (the latest electric feeder can get the highest accuracy and fast response speed, improve quality and production capacity). High-speed. High-precision electric feeder

Suction position automatic alignment function

SM pneumatic feeder can be shared

New vacuum system and suction / mount mode for SMART Feeder optimization

The world's first automatic pick material, automatic feeding

SM482 parameters

Positioning: flight camera + fixed camera

Placement Number of axes: 6 Axis x1 Cantilever

Mounting Speed: 28,000 CPH (Best Condition)

Corresponding components and parts:

0603 ~ □ 55mm (H 15mm), 0402 (Option)

PCB size (mm):

460 (L) x 400 (W) 510 (L) x 460 (W) (optional)

610 (L) x 510 (W) (Option) 740 (L) x 460 (W) (Option)

PCB thickness: 0.38-4.2mm

Feeder quantity (8mm basis): 120ea / 112ea

Energy consumption:

Power AC200 / 208/220/240/380 / 415V (50 / 60HZ, 3Phase)

Max.4.7kva

Air consumption 0.5-0.7MPa (5-7kgf / cm2) 180N / min

Dimensions: 1,650 (L) x 1,680 (D) x 1,530 (H)

Weight: about 1600kg
