Yamaha YS24X Pick and Place Machine

Yamaha YS24X Pick and Place Machine

Specifications:

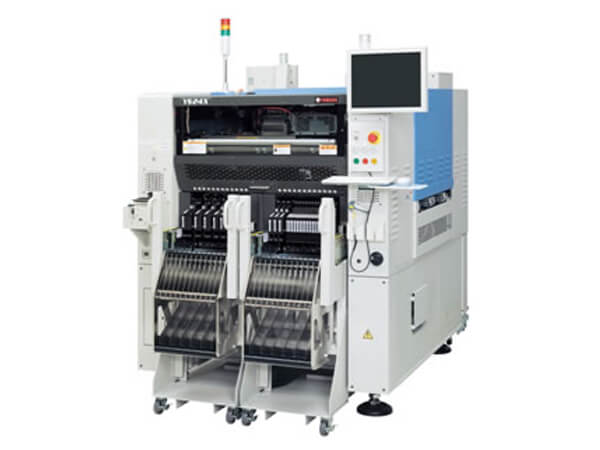

Yamaha YS24X Pick and Place Machine

YAMAHA YS24 The new YS24X achieves excellent productivity in relation to surface area and great versatility with its capability to accommodate a wide variety of electronic components, including irregularly shaped components up to 45mm × 45mm and 15mm in height.

Despite its compact platform with a width of just 1.25 m, this model has two multi-heads on independent beams with each head having 10 nozzles in an in-line configuration to achieve a superior mounting capability of 54,000 CPH*1 (0.067 sec./chip: Under optimum conditions as defined by Yamaha Motor) and also has the capability to accommodate extra large PCB (printed circuit boards), up to L700 × W460mm. What’s more, this model is complete with the optical verification functions and lighting to enable detection of defects and flaws of all ball electrodes and a coplanarity check*2 function, a large-sized nozzle station designed to hold a large number of nozzles to accommodate a wide range of electronic components and compatibility with the sATS 15-tray × 2 magazine automatic-replacement tray supply unit (option) to enable great flexibility in application.

Versatility to handle components ranging in size from 0402*3 to 45mm × 45mm and a maximum height of 15mm, while also achieving an outstanding mounting capability of 54,000 CPH (0.067 sec./chip: Under optimum conditions as defined by Yamaha Motor)

• Two multi-heads, each having 10 nozzles in an in-line configuration for the capability to handle large components and irregularly shaped components

• Fully rigid dual drive two-beam configuration

• Large nozzle station designed to hold a large number of nozzles to accommodate a wide range of electronic components

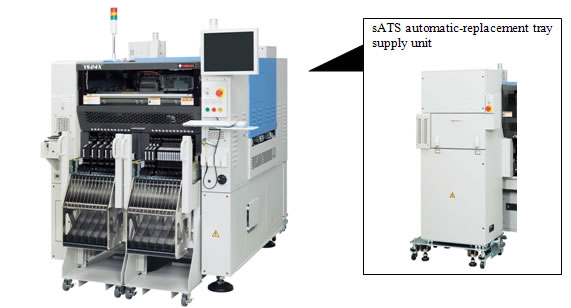

Compatibility with the sATS 15-tray × 2 magazine automatic-replacement tray supply unit (option) to enable supply of a larger variety of component types

Multi cameras fitted with vertically adjustable side lights. This enables accurate verification and mounting of ball-electrode type components BGA/CSP*4.

Coplanarity checker to detect irregularities in electrode height and direction to ensure reliability of connections for a large number of component electrodes, including QFP/large SOP and BGA/CSP

Compact external dimensions of 1,254 mm in width and 1,687 mm in depth. Depth of 2,020mm when coupled with the sATS tray component supply unit

Capability to handle super-large PCBs (printed circuit boards) (L700 × W460mm) to answer market needs for large flat panel TVs and LED light fixture PCB and large industrial-use PCB mounting

Compatibility with the electric-drive intelligent tape feeder “SS Feeder” that employs microcomputer control to provide high-speed components supply and high-accuracy components positioning, thus ensuring excellent job setup efficiency and enabling job failure prevention functions

High Mounting Quality Guaranteed

• The “MACS (Multiple Accuracy Compensation System)” has been adopted. It compensates for various factors that change accuracy in a complex and multi-faceted manner, guaranteeing a constant mounting accuracy of ?0.05mm.

Actual Operating Ratio increased by Ease of Maintenance

• Nozzles common with the “YS12,” “YS100” and “YS24” have been adopted to ensure superior ease of maintenance.

• Standard provision of a “Blow Station” enables self-cleaning of the nozzle shaft, reducing the amount of maintenance work.

Achieves Superior Ease of Operation

• Graphic display design with superior ease of operation has been adopted. An easy to view and easy to understand man-machine interface achieves very easy operation.

• Higher operating ratio and superior quality control are supported by the below software “Y.FacT” and “IT Option”.

• One of four display languages (Japanese, English, Chinese or Korean) can be selected according to the location where the unit is installed.

Safety and Environmental Considerations

• Device is compatible with CE marking *5 to ensure safe device design, enabling it to be marked around the world.

• Compatible with air supply source of 0.45MPa.

Model Name	YS24X
Applicable PCB	L50 × W50mm - L700 × W460mm
Mounting Capability	54,000CPH (0.067 sec./CHIP conversion: Optimum conditions established by Yamaha Motor)
Mounting Accuracy	Absolute accuracy (μ + 3σ): ±0.05mm/CHIP, ±0.05mm/QFP Repeatability (3σ): ±0.03mm/CHIP, ±0.03mm/QFP
Applicable Components	0402 - 45mm × 45mm, Height 15mm or less, Ball type electrode components applicable * 32 × 32mm or more needs special nozzle set
Component Types	Tape reel: 96 types (Max.,8mm tape reel conversion) Tray: 30 types (Max., JEDEC trays conversion)
Power Supply	3-Phase AC 200/208/220/240/380/400/416 V ±10%
Air Supply Source	0.45MPa
External Dimensions	L1,254 × W1,687 × H1,445mm (Main unit only) L1,254 × W2,020 × H1,545mm (When sATS is installed)
	Approx. 1,700kg (Main unit only) Approx. 1,870kg (When sATS is installed)
