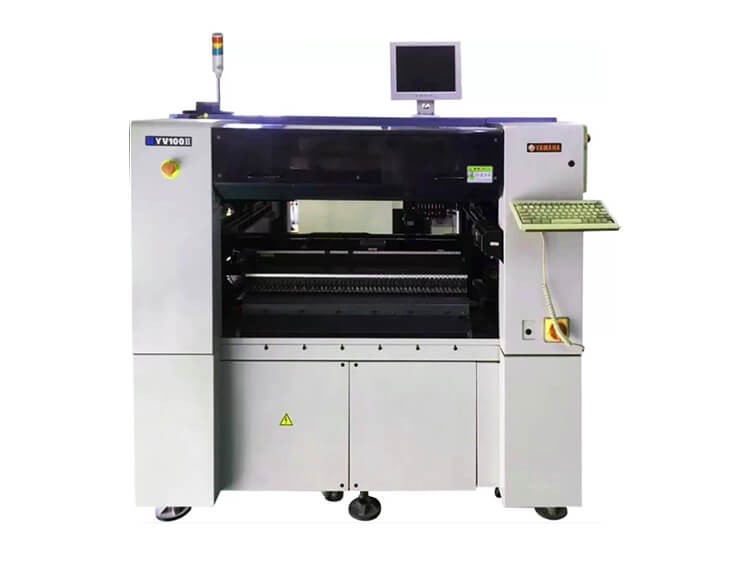

Yamaha YV100II Pick and Place Machine

Yamaha YV100II Pick and Place Machine

Specifications:

Yamaha YV100II Pick and Place Machine

Yamaha YV100II parameters

1. Based on the reliability of the basic structure of the high-speed machine

2. Protection components of the mount

3.0.25 seconds / CHIP high-speed mounting

4 can be mounted 0.5 feet spacing 32mm QFP

5. High-speed image processing

6.2 cameras reduce production time

7. Newly designed high rigidity frame

8. Increase the speed of the shaft

9. Can handle a variety of components

10. The most suitable for computer SIMM production with 8 wired head

Substrate size: L600 * W400 (Max) / L50 * W50 (Min)

Substrate thickness 0.4-3.0

Substrate conveying direction right - left

Mounting accuracy ± 0.1mm / CHIP ± 0.08 / QFP

Mounting Speed 0.25 sec / CHIP 1.7 sec / QFP

Original Type Ribbon original: 100 (MAX, 8MM with conversion)

Tray Original: 80 kinds (TMAX, YTF use)

The original form of supply 8-56mm broadband, rod, bulk, tray

Placement Original 1005 ~ QFP'SQP'SOJ'PLCC (25mm) BGA (0.4p)

Power three-phase AC220 / 208/230/240/380/400 / 416V ± 10%, 50 / 60HZ

Power 4KVA

Pressure above 0.55MPA, 350MIN

Patch speed 12000 (grain / hour)

Dimensions L1650 * W1350 * H1810

Weight 1300 (kg)
