PCB:450X340mm
PCB weight: 3KG
size: 1530x1172x1385mm
Weight:1000Kg

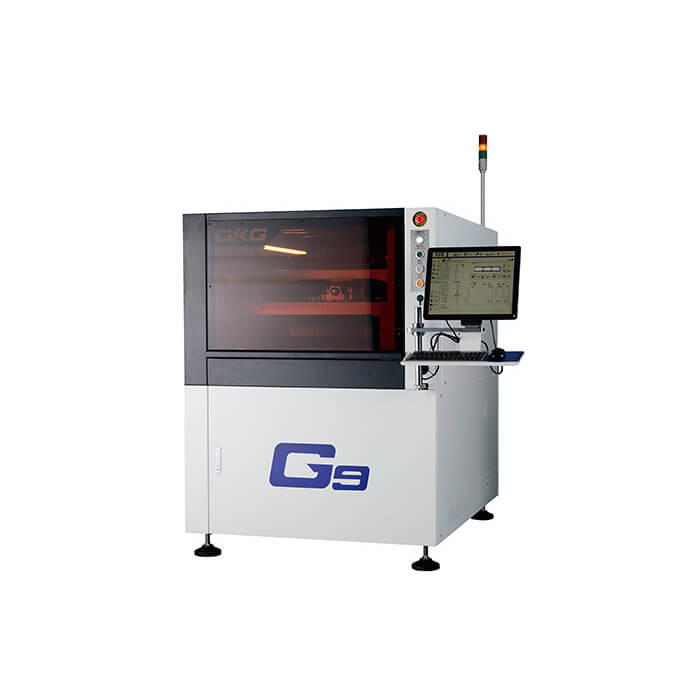

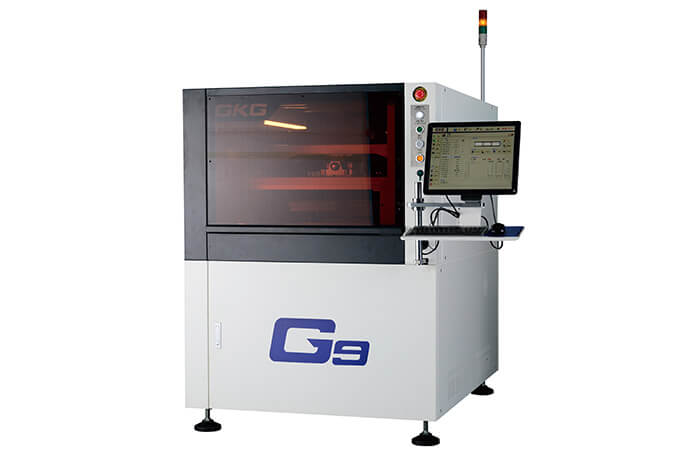

GKG G9 SMT Stencil Printer
Specifications:
GKG G9 automatic tin paste printing machine is a high-end model for SMT high-end application, which can satisfy the printing process requirements of 03015,0.25 pitch, high precision and high speed.
G9 is high accuracy and high stability of the fully automatic printing machine vision,GKG followed in SMT industry is the development trend of production of a new generation of fully automatic printing machine with the international leading technology synchronous vision, visual processing of high resolution, high precision of the transmission system, suspension adaptive scraper.
Item | Parameter | |
Repeat Position Accuracy | ±0.01mm(Test data and method are available) | |
Printing Accuracy | ±0.018mm(Test data and method are available) | |
Printing Speed / Cycle Time | <8s (Exclude Printing & Cleaning) | |
Products Changeover | <5Min | |
Screen Stencil Size/Min-Max | 470mm X340mm-737mm X737mm | |
Screen Stencil Size/Thickness | 20mm ~ 40mm | |
PCB Size/Min-Max/Thickness5 | 0X50mm-450X340mm/0.4~15mm | |
PCB Warpage Ratio | ＜1%（Based on diagonal length） | |
Bottom of Board Size | 15mm（Standard configuration）, 25mm | |
Edge of Board Size | 3mm | |
Conveyor Height | 900±40mm | |
Conveyor Direction | Left-Right; Right-Left; Left-Left; Right-Right | |
Conveyor Speed | 100-1500mm/sec Programmable control | |
Board Positioning | Support System | Magnetic pin/Side support block/Flexible automatic pin（optional） |
Clamping System | Elastic side clamping/Vacuum nozzle/Extension-type Z-direction table setting | |
Print head | Two indepandent Motorised printheads | |
Squeegee Speed | 6~300mm/sec | |
Squeegee Pressure | 0-10kg software control（closed-loop pressure feedback）, pressure value visible | |
Squeegee Angle | 60°(Standard )/55°/45° | |
Squeegee Type | Steel squeegee (standard), rubber squeegee, and other types of squeegee shall be customized. | |
Steel Mesh Separation Speed | 0.1~20mm/sec Programmable Control | |
Cleaning Method | Dry-type, wet-type, vacuum-type ( Programmable combination of Cleaning methods） | |
Table Adjustment Range | X:±3mm; Y:±7mm θ:±2° | |
Type of Fiducial Point | Standard geometry shape of fiducial point, bonding pad / Stencil hole | |
Camera System | Single digital camera for upward/downward vision system | |
Air Pressure | 4~6Kg/cm2 | |
Air Consumption | Approx 0.07m3 /min | |
Control Method | PC Control | |
Power Supply | AC:220±10%,50/60HZ 1Φ 1.5KW | |
Machine Dimensions/Weight | Depends on exactly model | |
Operation Temperature | -20°C ~ +45°C | |
