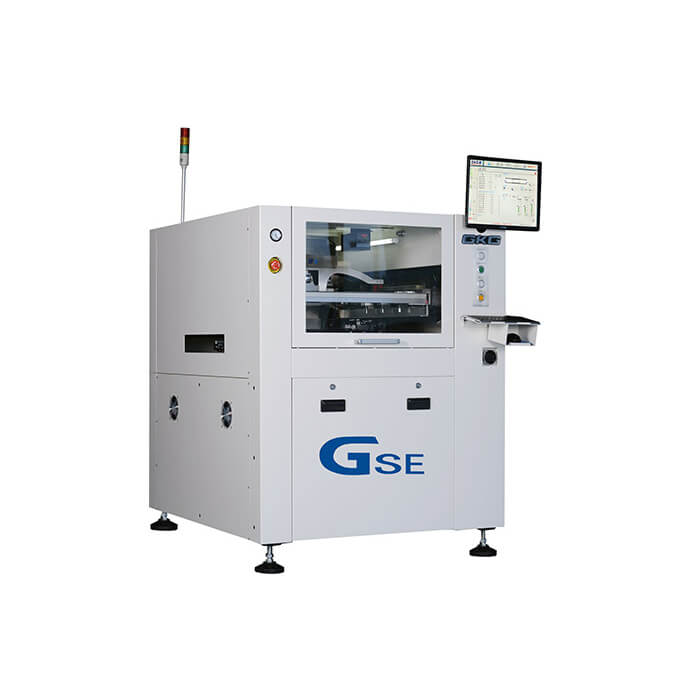

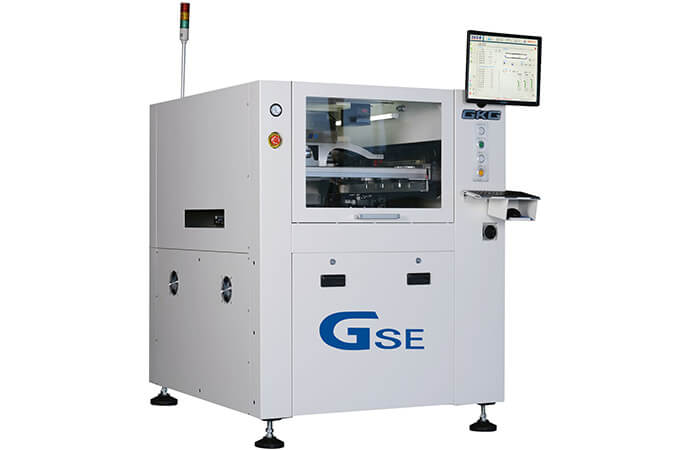

GKG GSE SMT Stencil Printer

GKG GSE SMT Stencil Printer

Specifications:

GKG GSE SMT Stencil Printer

Automatic solder paste printer is a high-precision and high-stability automatic vision printer. GKG company follows the development trend of the SMT industry. The new generation of automatic vision printer is synchronized with international leading technology, high-resolution visual processing. , High-precision drive system, Suspending adaptive scraper, precise plate positioning processing and smart frame clamping structure, compact structure, both accuracy and high degree of flexibility, provide customers with efficient, accurate printing required Function, more customers provide a prominent price.

The main technical parameters:

(1) Printing accuracy: ±0.025mm

(2) Repeat accuracy: ±0.01mm

(3) Printing cycle: <7.5s

(4) Frame size from 420×520mm to 737×737mm

(5) Printable PCB size from 50×50mm to 400×340mm

1. The GKG dedicated manual adjustment jacking platform is simple, reliable, low-cost, and easy to adjust manually. It can quickly adjust the height of the PIN pin top of different thickness PCB boards.

2. Image and optical system New optical system - uniform ring light and high-brightness coaxial light, with brightness function that can be infinitely adjusted, making all types of Mark points can be well recognized (including uneven Mark Point) to adapt to tin, copper, gold, spray tin, FPC and other types of different colors of PCB.

3. Scraper system slide-type scraper system to improve operating stability and prolong service life

4. Cleaning System The new wiper strip ensures full contact with the stencil, and the large vacuum suction force guarantees that the solder paste remaining in the cell hole can be eliminated. The effective automatic cleaning function is achieved: three cleaning modes of wet and dry vacuum, and the software is free to use Set the cleaning mode and cleaning paper length

5. Steady steel net fixing structure

6. Perfect 2D detection system

Item		Parameter
Repeat Position Accuracy		±0.01mm(Test data and method are available)
Printing Accuracy		±0.025mm(Test data and method are available)
Printing Speed / Cycle Time		<8s (Exclude Printing & Cleaning)
Products Changeover		<5Min
Screen Stencil Size/Min-Max		470mm X340mm-737x737mm
Screen Stencil Size/Thickness		20mm ~ 40mm
PCB Size/Min-Max/Thickness		80X50mm-400x340mm/0.4~15mm
PCB Warpage Ratio		＜1%（Based on diagonal length）
Bottom of Board Size		15mm（Standard configuration）, 25mm
Edge of Board Size		3mm
Conveyor Height		900±40mm
Conveyor Direction		Left-Right; Right-Left; Left-Left; Right-Right
Conveyor Speed		100-1500mm/sec Programmable control
Board Positioning	Support System	Magnetic pin/Side support block/Flexible automatic pin（optional）
	Clamping System	Elastic side clamping/Vacuum nozzle/Extension-type Z-direction table setting
Print head		Two indepandent Motorised printheads
Squeegee Speed		6~300mm/sec
Squeegee Pressure		0-10kg software control（closed-loop pressure feedback）,  pressure value visible
Squeegee Angle		60°(Standard )/55°/45°
Squeegee Type		Steel squeegee (standard), rubber squeegee, and other types  of squeegee shall be customized.
Steel Mesh Separation Speed		0.1~20mm/sec Programmable Control
Cleaning Method		Dry-type, wet-type, vacuum-type  ( Programmable combination of Cleaning methods）
Table Adjustment Range		X:±3mm; Y:±7mm θ:±2°
Type of Fiducial Point		Standard geometry shape of fiducial point, bonding pad / Stencil hole
Camera System		Single digital camera for upward/downward vision system
Air Pressure		4~6Kg/cm2
Air Consumption		Approx 0.07m3 /min
Control Method		PC Control
Power Supply		AC:220±10%,50/60HZ 1Φ 1.5KW
Machine Dimensions/Weight		Depends on exactly model
Operation Temperature		-20°C ~ +45°C
Operation Humidity		30%~60%
