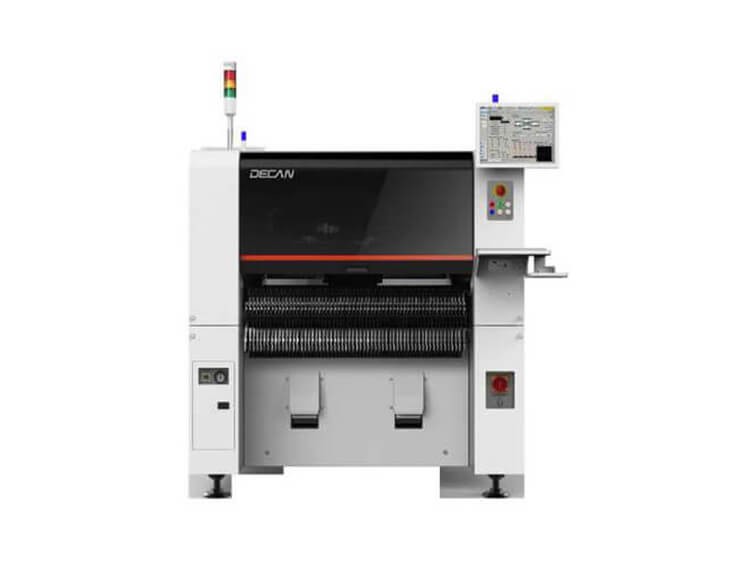

Hanwha DECAN F2 Pick and Place Machine

Hanwha DECAN F2 Pick and Place Machine

Specifications:

Hanwha DECAN F2 Pick and Place Machine

DECAN F2 next-generation high-speed universal chip mounter, provides the highest productivity and mounting precision in it class.

Best in class productivity

The Hanwha DECAN F2 next-generation high-speed universal chip mounter, provides the highest productivity and mounting precision in it class. The modular conveyor allows Optimal PCB flow and it is possible to convert to large board handling in the customer facility. Stage vision and tray feeder options increase its flexibility.

Responding to changes in your products

Conveniently modified on site to be capable of handling large-size PCBs; an industry first. Customer costs are minimized, and products can be changed without additional investments in new equipment.

Improved versatility

High-speed and high-precision production from microchips to odd-shaped components in the same platform

Maximized production efficiency

Part mounting and PCB transportation path are optimized with flying vision and modular conveyor sections.

Optimizing PCB transportation paths for productivity improvement

Modular Conveyors

An optimal conveyor model configuration is possible according to production line composition (shuttle ? dual) applied with a modular conveyor that is replaceable on site.

PCB supply time is shortened as a result of high-speed shuttle conveyor operation. Minimized head path for improved equipment speed.Twin Servo Control

Ensuring high-speed operation with a linear motor application to the Y axis, and twin servo control High-speed Flying Head

Minimized head movement path through recognizing parts during transportation following parts installation

10-spindle head with individually operating Z axes

High Reliability

Placement Accuracy: ±40um (0402mm  01005inch)

Applied with a high-precision linear scale and rigid mechanism

Provides precision calibration algorithms and diverse automatic calibration functions

Easy Operation

Strengthened equipment software operation convenience

Convenient production and editing of work programs with built-in equipment optimization software

Provision of a range of work data and information on a large-scale LCD screen

High-precision, convenient electric feeder

Calibration and maintenance-free electric feeder

Improved work convenience with a single reel bank mounted feeder

Improved productivity through the provision of  automatic parts pick-up position alignment between feeders

Reduced work load through parts connection automation (smart feeder)

Automatic loading and splicing capabilities implemented as an industry first - Significantly reduction in work time through feeder preparation and parts connection operation automation which were previously carried out manually

Zero consumables costs for parts connection attained.

■ High Performance

· 2 Gantry, Flying Vision Head

· 80,000 CPH (OPTIMUM, FS10 Head)

■ High Reliability

· Linear Motor Apply: High-Accuracy,

■ Low-noise

· Accuracy +-40um@ Cpk>1.0(@0402)

· Accuracy +-30um@ Cpk>1.0 (QFP/Stage Vision)

■ Flexible Production

· Modulas Conveyor System

· PCB 740mm x 460mm Handle
