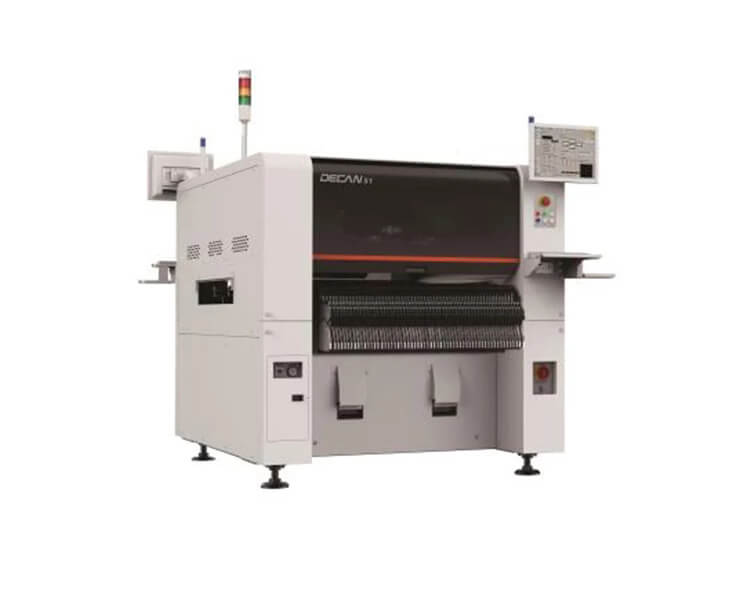

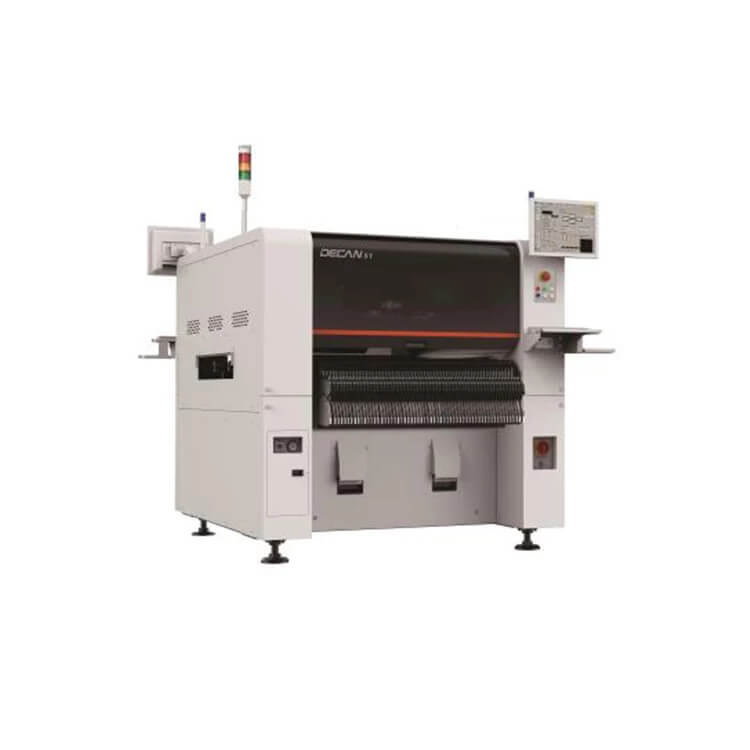

Hanwha DECAN S1 Pick and Place Machine

Hanwha DECAN S1 Pick and Place Machine

Specifications:

Hanwha DECAN S1 Pick and Place Machine

• Improves actual productivity

• Improves placement quality

• Reduces loss rate

Highest Performance among Chip Mounters of the Same Class

Highest Applicability of Medium Speed Chip Mounters to PCBs

• 510 x 510mm (standard) / 1500 x 460mm (option)

– Possible to produce PCBs up to 1,500mm(L) x 460mm(W) in size

Expands the Component Recognition Range with a High Pixel Camera

• The fly camera can recognize all chips of 03015 ~  16mm

Improves Simultaneous Pickup Rate

• Arranges pocket positions automatically through communication between the machine and feeder

Improves the Placement Speed of an Odd-Shape Component

• Increases speed by approximately 25% by optimizing the fix camera recognized motion sequence

Places Microchips Stably

Recognizes the Nozzle Center

• Improves the microchip loss rate and placement quality by preventing the occurrence of air leaks

Run Time Calibration

• Maintains placement accuracy by performing automatic calibration during production

Auto Maintenance Prevents Pickup Error and Maintains Placement Quality*

• Measures pneumatic pressure and flow rate of the nozzle and shaft

• Removes foreign materials on the nozzle and shaft by high pressure

air blast

Increased Convenience of Operation

Reduces the Teaching Time of a Large Odd-shape Component

• Expanded FOV of Fiducial Camera:  7.5mm →  12mm

– Reduces the time to teach the component pickup/placement point and improves the convenience of teaching

Maintains the Pickup Coordinate of the Common Feeder

• When changing a model, reduces the model changing time by succeeding the pickup information of a similar model

Unifies the Chip Component Lighting Level

• By setting the same lighting value collectively, minimizes the lighting changing time, removes the productivity deviation by machine and improves the convenience of part DB management

Support of Multi-vendor Component *

• It’s possible to manage the same components supplied by two suppliers in one part name, so it’s Possible to perform production continuously without changing the PCB program for the components supplied by different vendors

Teaches Large-sized Components Easily (Panoramic View)

• Performs split-recognition of a large-sized component that is out of

the camera recognition range (FOV) and merges split component images into a single image before displaying.

– Easily teaches the pickup/placement position of a large-sized component

Length	1430 mm
Width	1740 mm
Height	1485 mm
Weight	1600 kg
Power	400 V / 3 / N / PE - 50 Hz / 60 Hz
Compressed air	Yes
Min. Cross-section	50 mm²
Max. Cross-section	40 mm²
Max. outside diameter	510 mm
Inline	Yes
Dual lane	No
CPH	47000
Piano head	Yes
Turret head	No
Max. comp height	15 mm
Min. comp size	01005 inch
Max. comp size	55x55
Feeder position (8mm)	120
Placement accuracy chip	28μm @ Cpk≥ 1.0
Spindles	10
Gantrys	1
Force control	No
