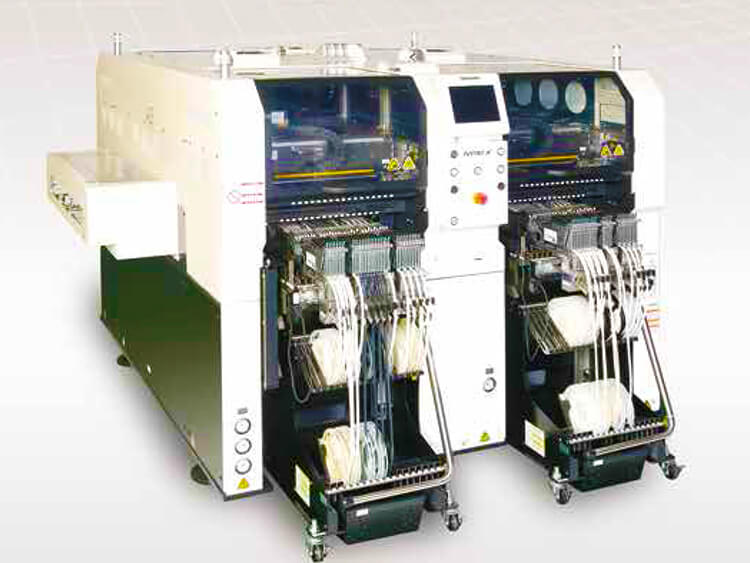

Panasonic NPM DX Pick and Place Machine

Panasonic NPM DX Pick and Place Machine

Specifications:

The NPM-DX Pick and Place Machine provides a greater line throughput, better quality and lower production cost featuring an autonomous line control, which guaranties a stable operation based on automatic functionality. This functionality in combination with the machine set up offers a labor-saving production with improved utilization.

In combination with the Panasonic software environment and embedded into an Industry 4.0 philosophy, the user can expect a modern shop floor management system including various remote operation options, feeder setup navigation, component supply navigation etc.

In total, the NPM-DX reduces downtimes and increase the line throughput.

With 92 400 cph and a feeder capacity for up to 136 reels, the NPM-DX is the ideal solution to meet the expectation of an evolving electronics assembly industry.

The NPM-DX can process PCB sizes of up to 510 x 590 mm and place large connectors (up to 150 x 25mm) and other components (up to 120 x 90mm).

This and other features make the NPM-DX the best solution for high volume-mix manufacturing.

92 400 cph and feeding with up to 136 reels

Ready for line automatization

Available APC system

Automatic recovery options

Remote operation option

Lowest total cost of ownership (TCO) with maintenance services

Advanced feeder setup and component supply navigation

Integrated floor management

Model ID		Panasonic NPM-DX Pick and Place Machine
PCB dimensions (mm) *When the long spec. conveyor is selected	Single-lane mode	L 50 × W 50 ~ L 510 × W 590
	Dual-lane mode	L 50 × W 50 ~ L 510 × W 300
PCB exchange time *When the short spec. conveyor is selected		2.1 s ( L 275 mm or less) 4.8 s ( L 275 mm or over to L 460 mm or less) *May differ depending on PCB specifications.
Electric source		3-phase AC 200, 220, 380, 400, 420, 480 V 5.0 kVA
Pneumatic source *1		Min.0.5 MPa、200 L /min (A.N.R.)
Dimensions (mm)		W 1 665 *2 × D 2 570 *3 × H 1 444 *4
Mass		3 600 kg (Only for main body:This differs depending on the option configuration.)



Placement head		Lightweight 16-nozzle head V2 (Per head)	Lightweight 8-nozzle head (Per head)	4-nozzle head (Per head)
Max. speed		46 200 cph (0.078 s/ chip)	24 000 cph (0.150 s/ chip)	8 500 cph (0.424 s/ chip) 8 000 cph (0.450 s/ QFP)
Placement accuracy (Cpk≧1)		±25 μm/Square chip	±25 μm/ Square chip ±40 μm/QFP □12 mm Under ±25 μm/QFP □12 mm to □32 mm	±20 μm/ QFP
Component dimensions (mm)		0201 component *5*6 / 03015 component *5 0402 component *5 to L 6 x W 6 x T 3	0402 component *5 ~L 45 x W 45 or L 100 x W 40 x T 12	0603 chip ~ L 120 x W 90 or L 150 x W 25 x T 30
Component supply	Taping	Tape:4 / 8 / 12 / 16 / 24 / 32 / 44 / 56 mm		Tape:4 ~56 /72 / 88 / 104 mm
		4, 8 mm tape:Max. 136
	Stick	Max. 32 (Single stick feeder)

*1 : Only for main body
*2: 2 265 mm in width if extension conveyors (300 mm) are placed on both sides.
*3: Dimension D including feeder cart
*4: Excluding the monitor, signal tower and ceiling fan cover.
*5: 0201/03015/0402 component requires a specific nozzle/tape feeder.
*6: 0201 component placement is optional. (Under conditions specified by Panasonic)
* Placement tact time and accuracy values may differ slightly depending on conditions.
* Please refer to the specification booklet for details.
