Panasonic NPM-TT2 Pick and Place Machine

Panasonic NPM-TT2 Pick and Place Machine

Specifications:

Panasonic NPM-TT2 Pick and Place Machine

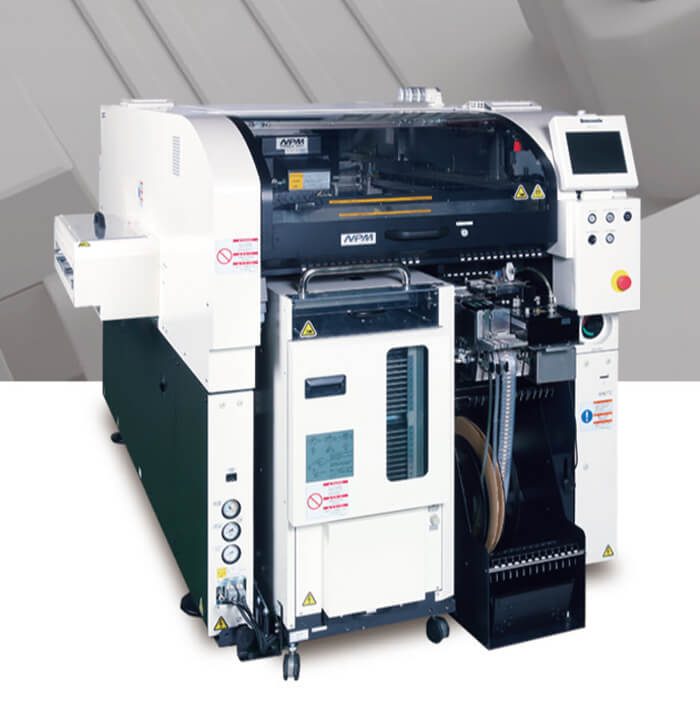

The NPM-TT2 (Next Production Modular-Twin Tray II) platform represents the next generation in twin tray modular production from Panasonic’s award-winning NPM platform—ideal for any mix.

Further bolstering the SMT process to accommodate more tray-supplied parts in full independently-run-lane mode, the NPM-TT2 processes boards up to 510 x 590mm and its dual lane functionality allows assembly of more of one product or two different products at the same time.

As common throughout the NPM-series, the NPM-TT2 features a Multi-Recognition Camera that increases processing speeds with a dynamic vertical-view of component condition and eliminating the need for a standard line cameras and independent 3D sensors.

With a new, advanced lightweight 3-nozzle head V2 (100N), pin-in-place lighting option and stackable stick feeders, the NPM-TT2 leads the way in terms of odd-placement capabilities.

Designed to blend seamlessly with other Panasonic NPM-series equipment as well at the NPM-DX, the NPM-TT2 optimizes throughput in a high-volume, dual-lane environment

Features & Benefits

Compatible with lightweight 8-nozzle or 3-nozzle head V2

Part Range: (01005) 0402 chip to 1 20L x 90W x 28T to BGA up to 80 x 80 component range

Process up to 40 trays and 26 fixed tape and reel inputs per side for a total of 92 available inputs

Minimize downtime with pre-pickup smart tray component inspection and interchangeable feeder and tray locations

Compatible with CM and NPM-series intelligent feeders & nozzles

Model		NPM TT2	NPM TT2
PCB dimensions (mm)		PC size Single-lane mode	L 50 x W 50 ~ L 510 x W 590
		PC size Dual-lane mode	L 50 x W 50 ~ L 510 x W 300
		M size Single-lane mode	L 50 x W 50 ~ L 510 x W 510
		M size Dual-lane mode	L 50 x W 50 ~ L 510 x W 260
PCB exchange time		Single-lane mode	4.0 s (With no component mounted on the reverse side of PCB)
		Dual-lane mode	0 s* *No 0s when cycle time is 4.0 s or less
Electric source		3-phase AC 200, 220, 380, 400, 420, 480 V 2.5 kVA
Pneumatic source		Min.0.5 MPa, 200 L /min (A.N.R.)
Dimensions *1 (mm)		W 1 300*2 x D 2 798*3 x H 1 444*4
Mass Weight		2 690 kg Only for main body
Placement head		Lightweight 8-nozzle head (Per head)	3-nozzle head V2 *5 (Per head)
Placement speed	PC size	18 000 cph (0.20 s/chip)	7 200 cph (0.50 s/chip) 5 900 cph (0.61 s/QFP)
	M size	17 460 cph (0.21s/chip)	6 984 cph (0.52 s/chip) 5 723 cph (0.63 s/QFP)
Placement accuracy (Cpk>1)		± 40 µm/chip ± 30 µm/QFP 12mm to 32mm ± 50 µm/QFP12mm Under	±40 μm/ chip ±30 μm/ QFP
Component dimensions (mm)		0402 chip*6 to L 32 x W 32 x T 12	0603 chip to L 150 x W 25 (diagonal152) x T 30
Component supply	Taping	Tape : 4 to 56 / 72 mm	Tape : 4 to 56 / 72 / 88 / 104 mm
		Specifications for front/rear tray feeders : Max.52 Specifications for front/rear feeder carts : Max.120 (Tape:4, 8 mm)
	Stick	Specifications for front/rear tray feeders : Max.12 (Single stick feeder)
		Specifications for front/rear feeder carts : Max.28 (Single stick feeder)
	Tray	Max.40 (Front supply unit : Max. 20 + Rear supply unit : Max. 20)

*1 : Only for main body
*2 : 1 820 mm in width if extension conveyors (260 mm) are placed on both sides
*3 : Dimensions shown are specifications for front/rear tray feeders . Dimensions of specifications for front/rear feeder carts : 2 893 mm
*4 : Excluding the monitor, signal tower and ceiling fan cover.
*5 : 3-nozzle head V2 cannot be installed on NPM-D3
*6 : The 0402 chip requires a specific nozzle/feeder.
*Placement tact time, inspection time and accuracy values may differ slightly depending on conditions.
*Please refer to the specification booklet for details.
