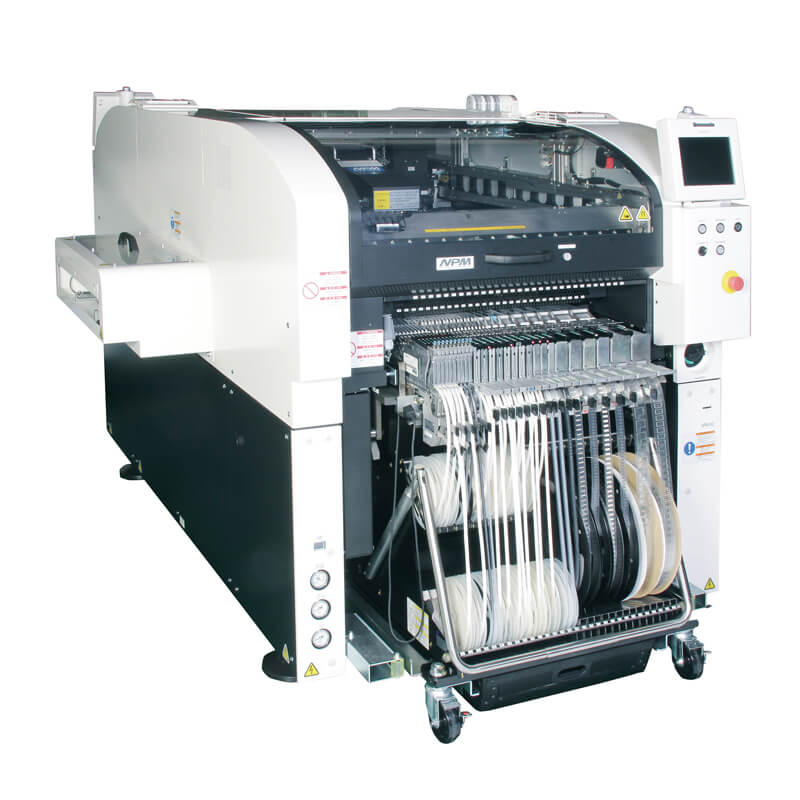

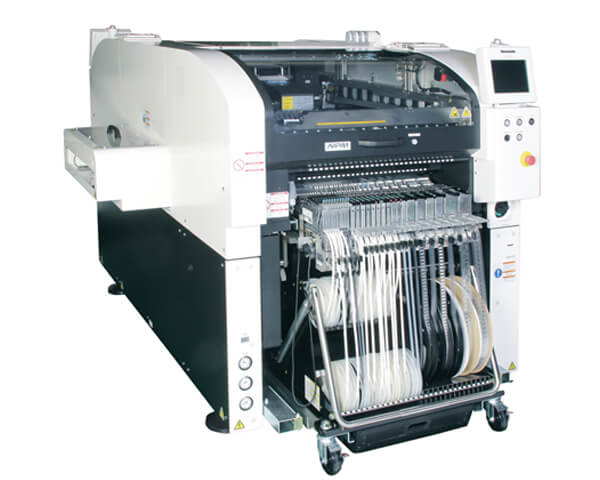

Panasonic NPM-W2 Pick and Place Machine

Max PCB: 750 x 550mm
Mounting Speed: 77,000 CPH
Chip placing range: 03015-120x90mm
Feeder inputs: 30 feeder

Panasonic NPM-W2 Pick and Place Machine

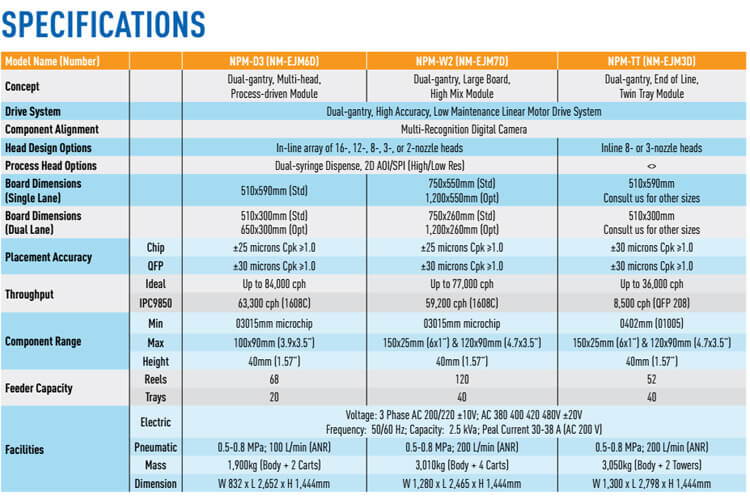

Specifications:

The new NPM-W2 amplifies the original NPM-W capabilities with a 10% throughput boost and 25% more accuracy. It also integrates new innovations like our incomparable Multi Recognition Camera.

Combined, these features extend the component range down to the 03015mm microchip, yet preserve capability up to 120x90mm components up to 40mm tall and nearly 6” long (150mm) connectors.

Board handling has also been improved. Available in either single lane or dual lane, the machine provides the ability to handle PCBs up to 1,490 x 550mm (58.7 x 21.6”)—ideal for long LED panels or large industrial boards.

Quick-change feeder carts, auto board support setup, and expanded nozzle capacity, along with 120 feeder inputs and our Intelligent Feeder Anywhere position the NPM-W2 as an ideal solution for “Any Mix Any Volume”.

Additionally, numerous placement and process head options, plus multiple component supply methods make the NPMP-W2 a versatile addition to any SMT manufacturing line.

The new, revolutionary Multi Recognition Camera uniquely combines three separate imaging capabilities into a single system: 2D alignment, component thickness inspection, and 3D coplanarity measurement.

The field upgradeable system eliminates any configuration challenges historically associated with competitive vision systems, which often resulted in excessive investments, improper configurations, inadequate capabilities, and even reduced quality. Versatile for today’s technology, and powerful for future inspection challenges, the Multi Recognition Camera helps manufacturers build higher quality products.

As always, manufacturers can scale NPM production lines to meet production needs while conserving investments until production or technology requirements mandate. OEMs and EMS providers can reconfigure the machine heads in approximately 15 minutes—maximizing flexibility, minimizing ROI, and protecting assets.

The NPM-W2 also incorporates existing feeders, carts, and nozzles to minimize investment and inventory expenses.

Other members of the NPM line include the NPM-D3 process solution and the twin tray NPM-TT2.

Features & Benefits

Plus new enhancements:

Board handling up to 1,490 x 550mm (58.1 x 21.6")

Quick-change feeder carts and nozzle banks

Compatible with CM & AM series intelligent feeders & nozzles

Board warp detection, Advanced Process Control (APC), and Auto Board Support Pin

Industry's first 3D Multi Recognition Camera

Lightweight 16-nozzle head (for 77,000 CPH)

Increased placement accuracy to 25um (cpk ≥ 1.0)

Model		Panasonic NPM W2 Pick and Place Machine
Rear head Front head		Lightweight 16-nozzle head			12-nozzle head		Lightweight 8-nozzle head	3-nozzle head V2		Dispensing head	No head
Lightweight 16-nozzle head		NM-EJM7D								NM-EJM7D-MD	NM-EJM7D
										NM-EJM7D-MD
Dispensing head		NM-EJM7D-MD									NM-EJM7D-D
Inspection head		NM-EJM7D-MA									NM-EJM7D-A
No head		NM-EJM7D								NM-EJM7D-D
PCB Dimension (mm)		Single lane*1			Batch mounting			L 50 x W 50 ~ L 750 x W 550
					2-positin mounting			L 50 x W 50 ~ L 350 x W 550
		Dual-lane*2			Dual transfer (Batch)			L 50 × W 50 ~ L 750 × W 260
					Dual transfer (2-positin)			L 50 × W 50 ~ L 350 × W 260
					Single transfer (Batch)			L 50 × W 50 ~ L 750 × W 510
					Single transfer (2-positin)			L 50 × W 50 ~ L 350 × W 510
Electric source								3-phase AC 200, 220, 380, 400, 420, 480 V 2.8 kw
Pneumatic source *2								0.5 MPa, 200 L /min (A.N.R.)
Dimensions *2 (mm)								12803x23324×1444 *5
Mass								2 470 kg
Placement head		Lightweight 16-nozzle head (Per head)					12-nozzle head (Per head)			Lightweight 8-nozzle head (Per head)	3-nozzle head V2 (Per head)
		High production mode [ON]	High roduction mode [OFF]				High production mode [ON]	High production mode [OFF]
Max. speed		38 500cph (0.094 s/ chip)	35 000cph (0.103 s/ chip)				32 250cph (0.112 s/ chip)	31 250cph (0.115 s/ chip)		20 800cph (0.173 s/ chip)	8 320cph (0.433 s/ chip) 6 500cph (0.554 s/ QFP)
Placement accuracy (Cpk1)		±40 μm / chip	±30 μm / chip (±25μm / chip)*6				±40 μm / chip	±30 μm / chip		± 30 µm/chip ± 30 µm/QFP 12mm to 32mm ± 50 µm/QFP 12mm Under	± 30 µm/QFP
Component dimensions (mm)		0402*7 chip ~ L 6 x W 6 x T 3	030157 8/0402*7 chip ~ L 6 x W 6 x T 3				0402*7 chip ~ L 12 x W 12 x T 6.5			0402*7 chip ~ L 32 x W 32 x T 12	0603 chip to L 150 x W 25 (diagonal152) x T 30
Component supply	Taping	Tape : 4 / 8 / 12 / 16 / 24 / 32 / 44 / 56 mm Tape : 4 to 56 mm Tape : 4 to 56 / 72 / 88 / 104 mm
		Max.120 (Tape: 4, 8 mm) Front/rear feeder cart specifications : Max.120 ( Tape width and feeder are subject to the conditions on the left) Single tray specifications : Max.86 ( Tape width and feeder are subject to the conditions on the left) Twin tray specifications : Max.60 ( Tape width and feeder are subject to the conditions on the left)
	Stick	Front/rear feeder cart specifications : Max.30 (Single stick feeder) Single tray specifications : Max.21 (Single stick feeder) Twin tray specifications : Max.15 (Single stick feeder)
	Tray	Single tray specifications : Max.20 Twin tray specifications : Max.40
Dispensing head		Dot dispensing							Draw dispensing
Dispensing speed	0.16 s/dot (Condition : XY=10 mm, Z=less than 4 mm movement, No θ rotation) 4.25 s/component (Condition : 30 mm x 30 mm corner dispensing)*9
Adhesive position accuracy (Cpk1)	± 75 μ m /dot ± 100 μ m /component
Applicable components	1608 chip to SOP,PLCC,QFP, Connector, BGA, CSP BGA, CSP
Inspection head						2D inspection head (A)				2D inspection head (B)
Resolution						18 µm				9 µm
View size (mm)						44.4 x 37.2				21.1 x 17.6
Inspection processing time	Solder Inspection *10 0.35s/ View size
	Component Inspection *10 0.5s/ View size
Inspection object	Solder Inspection *10 Chip component : 100 μm × 150 μm or more (0603 or more) Package component : φ150 μm or more
	Component Inspection *10			Square chip (0603 or more), SOP, QFP (a pitch of 0.4mm or more), CSP, BGA, Aluminum electrolysis capacitor, Volume, Trimmer, Coil, Connector*11
Inspection items	Solder Inspection *10 Oozing, blur, misalignment, abnormal shape, bridging
	Component Inspection 10 Missing, shift, flipping, polarity, foreign object inspection 12
Inspection position accuracy *13 Cpk1		± 20 μm								± 10 μm
No. Of inspection	Solder Inspection *10 Max. 30 000 pcs./machine (No. of components : Max. 10 000 pcs./machine)
	Component Inspection *10 Max. 10 000 pcs./machine
