Samsung SM471 Pick and Place Machine

Samsung SM471 Pick and Place Machine

Specifications:

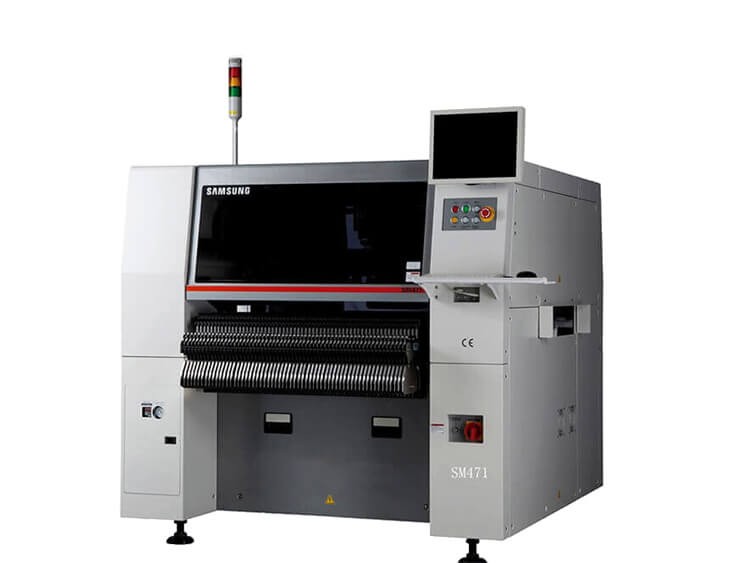

Samsung SM471 Pick and Place Machine

The Samsung SM471 is a high-speed pick and place machine equipped with 10 axes for each mount head and dual-boom,

high-performance newer flying camera placement machine that delivers world-class top speeds of 75,000 CPH .

0402Chip ~ 14mm can be basically corresponding, and through the application of high-speed.

High-precision electric feeder, improve the actual productivity and placement quality.

SM471 parameters

Model			Samsung SM471Pick and Place Machine
Positioning			Flying Camera
Gantry			10spindles x 2 Gantry
Placing Speed			Chip1608 75,000 CPH (best)
Placement Accuracy			±50μm@μ+3σ（Standard cip)
Component size			Chip 0402(01005 inch)  ~ 14mm(H12mm) IC,Connector(pitch 0.4mm),※BGA,CSP(ball distance0.4mm)
PCB size	Min		50（L）x40(W)
	Max	Single lane	510（L）x460(W)， 610（L）x460(W)(option)
		Dual Lane	460（L）x250(W) ， 610（L）x250(W)(option)
	PCB Thickness		0.38~4.2mm
Feeder input			120ea/112ea(trolley)
Power Supply			AC 200/208/220/240/380/415V(50/60Hz,3Phase)Max 5.0KVA
Air Pressure			0.5~0.7MPa(5~7kgf/cm2) 350NL/min，50NL/min(Vacuum Pump)
Weight			1,820kg
Dimension			1,650(L) x 1,680(D) x 1,485(H)
