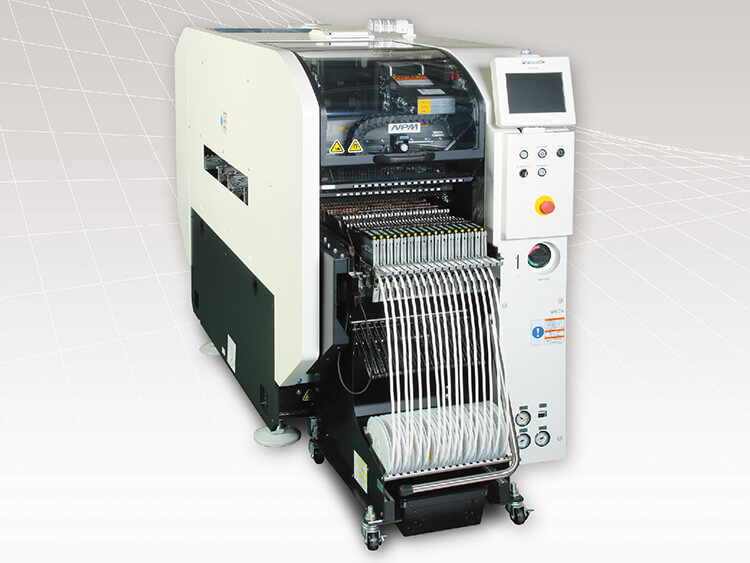

Panasonic NPM D3A Pick and Place Machine

Panasonic NPM D3A Pick and Place Machine

Specifications:

Panasonic NPM D3A Pick and Place Machine

Adoption of the light-weight 16-nozzle head V3

Improving Placement tact time by simultaneously driving X-/Y-axes and selecting optimal pathways during component recognition operation.

Advancement of head drive unit motion control

Improving placement tact time by further advancing motion control and thereby reducing X-/Z-axis travel time.

Use of new pickup operation algorithm

Improving effective productivity by enhancing pickup algorithm for microchips.

Panasonic NPM D3A Pick and Place Machine

Model ID			NPM-D3A
PCB dimensions (mm) *1	Dual-lane mode		L 50 × W50 ~ L 510 × W 300
	Single-lane mode		L 50 × W50 ~ L 510 × W 590
PCB exchange time	Dual-lane mode		0s* *No 0s when cycle time is 3.6 s or less
	Single-lane mode		3.6s* *When selecting short conveyors
Electric source			3-phase AC 200, 220, 380, 400, 420, 480 V 2.7 kVA
Pneumatic source *2			0.5 MPa, 100 L /min (A.N.R.)
Dimensions (mm) *2			W 832 × D 2 652 *3 × H 1 444 *4
Mass			1 680 kg (Only for main body : This differs depending on the option configuration.)
Placement head			Lightweight 16-nozzle head V3 (Per head)
			High production mode [ON]	High production mode [OFF]
Max. speed			46 000 cph (0.078 s/ chip)	38 000 cph (0.095 s/ chip)
Placement accuracy (Cpk≧1)			±37 μm/chip	±30 μm / chip (±25 μm / chip *5)
Component dimensions (mm)			0402 chip *6 ~ L 6 × W 6 × T 3	03015 *6*7/0402 chip *6 ~ L 6 × W 6 × T 3
Component supply		Taping	Tape : 4 / 8 / 12 / 16 mm
			Max. 68 (4, 8 mm tape, Small reel)



*1 :  Due to a difference in PCB transfer reference, a direct connection with NPM (NM-EJM9B) / NPM-W (NM-EJM2D) /NPM-W2 (NM-EJM7D) dual lane specs cannot be established.
*2 :  Only for main body
*3 :  Dimension D including feeder cart
*4 :  Excluding the monitor, signal tower and ceiling fan cover.
*5 :  ±25 μm placement support option. (Under conditions specified by Panasonic)
*6 :  The 03015/0402 mm chip requires a specific nozzle/feeder.
*7 :  Support for 03015 mm chip placement is optional. (Under conditions specified by Panasonic : Placement accuracy ±30 μm / chip）
* Placement tact time,inspection time and accuracy values may differ slightly depending on conditions
* Please refer to the specification booklet for details.
